Components [10/2015 - ]: Illustration

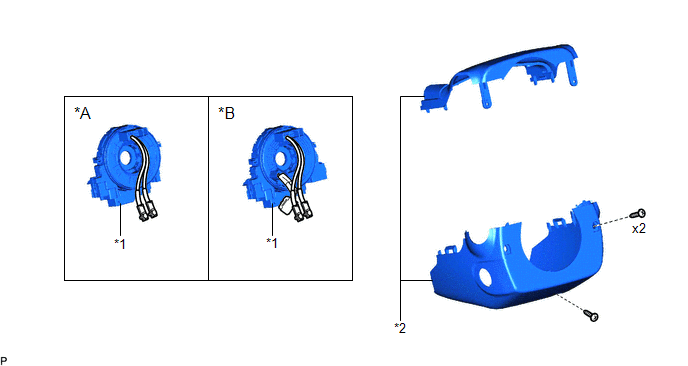

Fig 1: Steering Angle Sensor Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Steering Heater	*B	w/ Steering Heater
*1	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	*2	STEERING COLUMN COVER
