Components [10/2015 - ]: Illustration

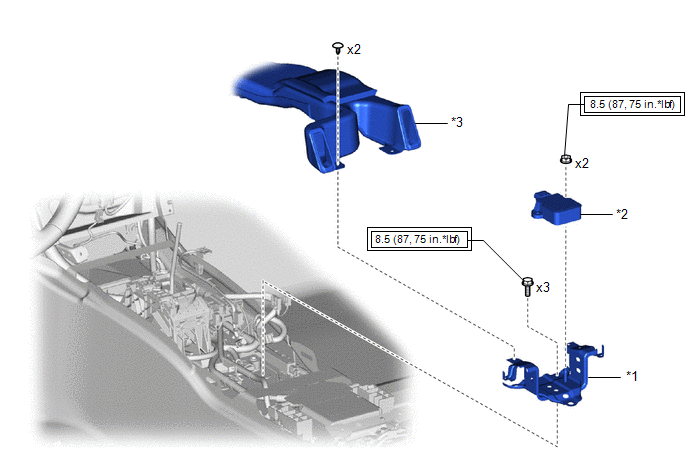

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 CONSOLE BOX MOUNTING BRACKET	*2	YAW RATE AND ACCELERATION SENSOR (YAW RATE SENSOR)
*3	NO. 1 CONSOLE BOX DUCT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)	-	-
