Removal [09/2017 - ]: Procedure

  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [09/2017 - ]

  2. REMOVE FUEL PUMP WITH FILTER ASSEMBLY

    Refer to DISASSEMBLY [10/2015 - ]

  3. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

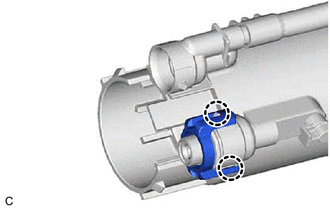

    1. Disengage the 2 claws to remove the No. 2 fuel suction support from the fuel filter.
      GTY517747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

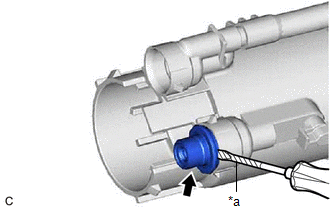

    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly.
      NOTE:

      Slowly pull out the fuel pressure regulator assembly because the O-rings are firmly installed between the fuel pressure regulator assembly and the fuel filter.

      GTY510916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Remove the 2 O-rings from the fuel pressure regulator assembly.
      GTY467360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
