Removal [09/2016 - 09/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2015 - ]

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [10/2015 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2016 - 09/2017]

  4. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [10/2015 - 09/2017]

  5. REMOVE REAR FLOOR SERVICE HOLE COVER
    1. Using a clip remover with its tip wrapped with protective tape, remove the rear floor service hole cover and butyl tape.

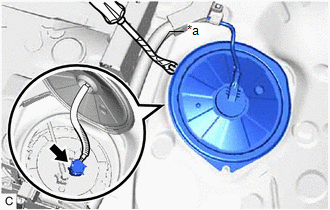

      GTY501263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Disconnect the fuel pump connector.
  6. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Remove the tube joint clip, and pull off the fuel tube joint of the fuel tank main tube sub-assembly.
      GTY519591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Suction Plate Sub-assembly
      *2 Tube Joint Clip
      *a Fuel Tube Joint
      *b O-ring
      *c Nylon Tube
      Pull off
      Pull off
      NOTE:
      • Remove any foreign matter on the fuel tube joint before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tube joint has O-rings that seal the plug.
      • Be sure to disconnect the fuel tube joint by hand.
      • Do not forcibly bend, twist or turn the nylon tube.
      • Protect the disconnected part by covering it with a plastic bag after disconnecting the fuel tube joint.
      • If the fuel tube joint and fuel suction plate sub-assembly are stuck, push and pull to release them.
  7. REMOVE FUEL PUMP GAUGE RETAINER
    1. Release the lock to remove the No. 1 fuel tube clamp.
      GTY501595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Front Side
    2. Remove the fuel pump gauge retainer.
      1. Set the 2 claws, 2 bolts and plate of SST on the fuel pump gauge retainer.
        • SST: 09808-14031
          1. 09808-01010
          2. 09808-01020
          3. 09808-01030
          4. 09808-01090
        • SST: 09808-01071

        HINT:

        Securely insert the ends of SST (claw) into the insertion points in the fuel pump gauge retainer.

        GTY618279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Insertion Point
        SST (Bolt)
      2. While firmly pressing SST (claw) into the insertion points in the fuel pump gauge retainer, tighten SST (bolt).
      3. Attach the handle of SST.
      4. Check once more that the tip of SST is securely inserted into the insertion area of the fuel pump gauge retainer as shown in the illustration.

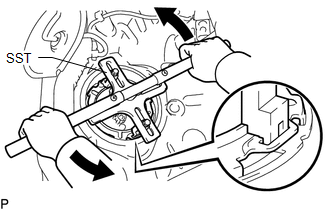

        GTY643078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Lightly press down on SST to prevent it from separating from the fuel pump gauge retainer. While pressing down on SST, rotate SST (handle) slowly to loosen the fuel pump gauge retainer.
        NOTE:
        • Do not use any tools other than specified in this operation as this may result in damage to the fuel pump gauge retainer or the fuel tank assembly.
        • Do not press down on SST excessively as this may make the fuel pump gauge retainer hard to rotate, and may damage components.
        • Make sure to rotate SST (handle) horizontally. If it is rotated at an angle, SST may come off.
        • Do not spin SST too fast or use an impact wrench as this may result in damage to components.
        • If SST comes off of the fuel pump gauge retainer, loosen SST (bolt) and reinstall SST.
      6. While pressing down on the fuel suction tube with pump and gauge assembly, remove the fuel pump gauge retainer.
  8. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
    1. Disconnect the fuel return vent tube sub-assembly and remove the fuel suction tube with pump and gauge assembly from the fuel tank assembly.
      GTY498823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Make sure that the fuel sender gauge assembly arm does not bend.
      • Do not damage the fuel return vent tube sub-assembly.
      • When disconnecting the fuel tube connector, do not excessively pull on the fuel return vent tube sub-assembly.
    2. Remove the fuel suction tube set gasket from the fuel tank assembly.
