Components [10/2015 - ]: Illustration

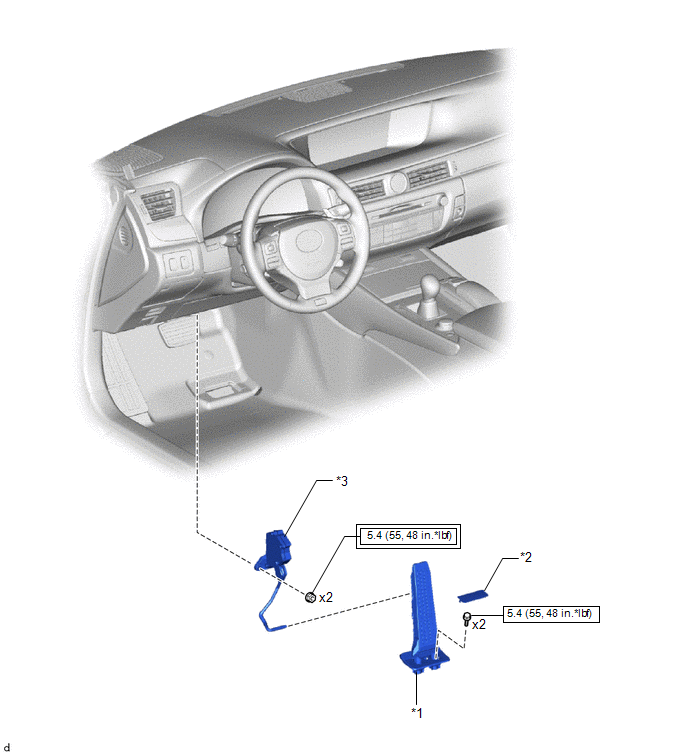

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ACCELERATOR PEDAL	*2	ACCELERATOR PEDAL PAD
*3	ACCELERATOR PEDAL SENSOR ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
