Components [10/2015 - ]: Illustration

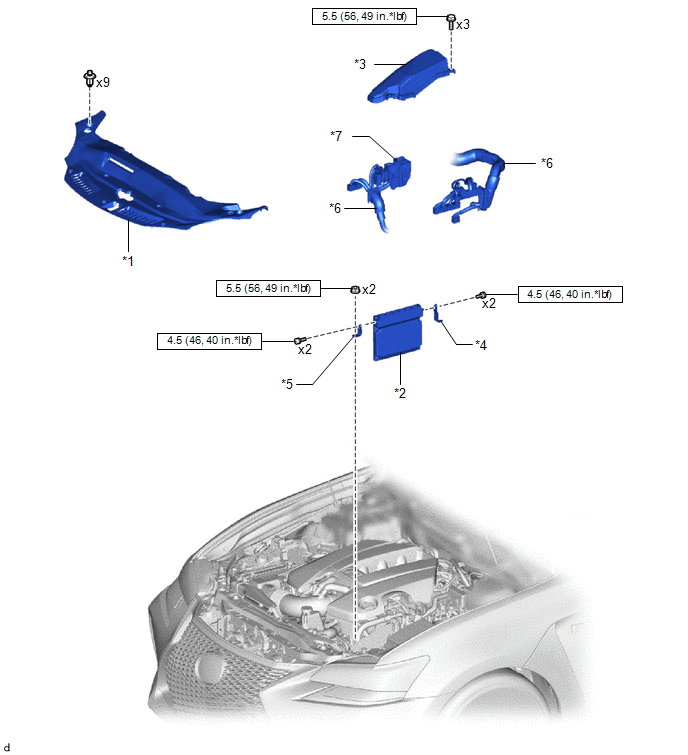

Fig 1: ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COOL AIR INTAKE DUCT SEAL	*2	ECM
*3	ENGINE ROOM ECU COVER	*4	NO. 1 ECM BRACKET
*5	NO. 2 ECM BRACKET	*6	WIRE HARNESS
*7	CONNECTOR HOLDER	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
