Components [10/2015 - ]: Illustration

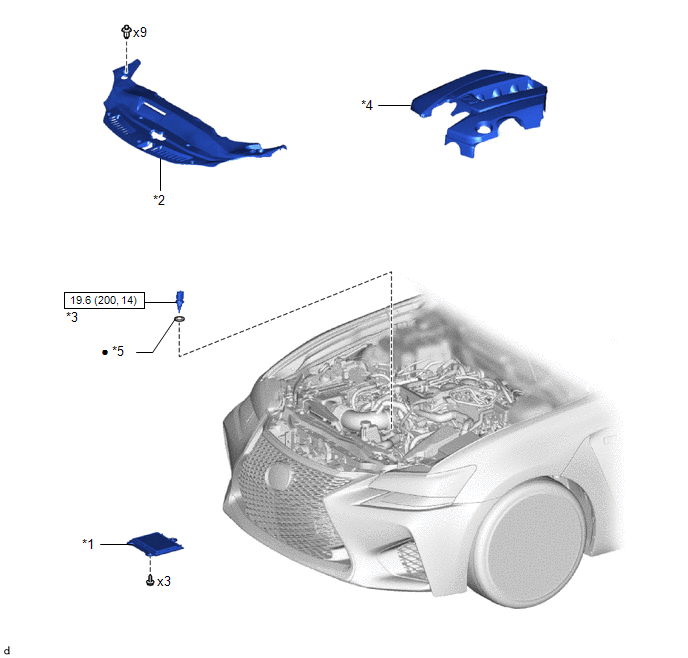

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CENTER NO. 4 ENGINE UNDER COVER	*2	COOL AIR INTAKE DUCT SEAL
*3	ENGINE COOLANT TEMPERATURE SENSOR	*4	V-BANK COVER SUB-ASSEMBLY
*5	GASKET	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
