Components [10/2015 - ]: Illustration

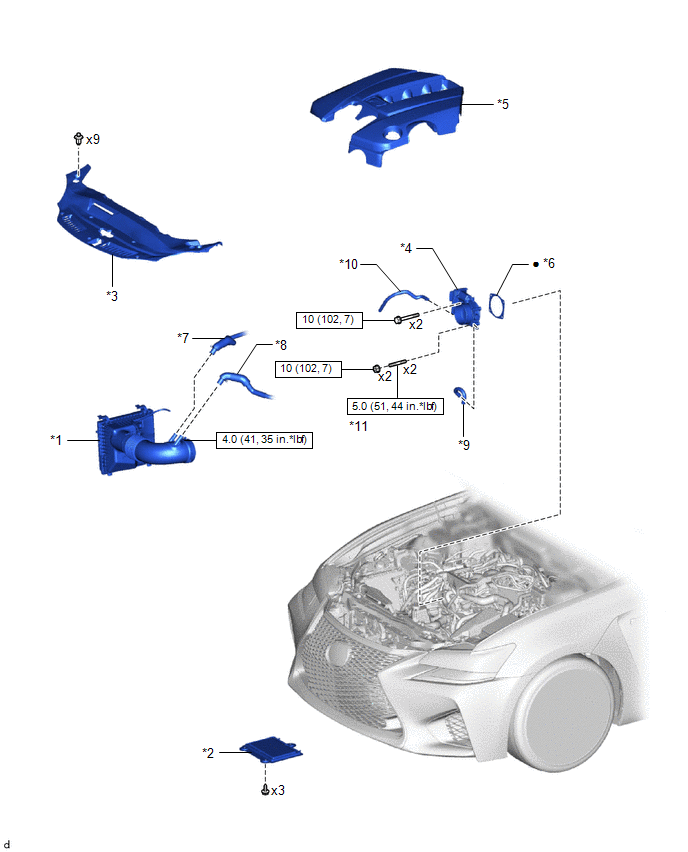

Fig 1: Throttle Body Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	CENTER NO. 4 ENGINE UNDER COVER
*3	COOL AIR INTAKE DUCT SEAL	*4	THROTTLE BODY WITH MOTOR ASSEMBLY
*5	V-BANK COVER SUB-ASSEMBLY	*6	THROTTLE BODY GASKET
*7	NO. 2 VENTILATION HOSE	*8	NO. 3 VENTILATION HOSE
*9	NO. 4 WATER BY-PASS HOSE	*10	NO. 5 WATER BY-PASS HOSE
*11	STUD BOLT	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
