Removal [09/2017 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2015 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

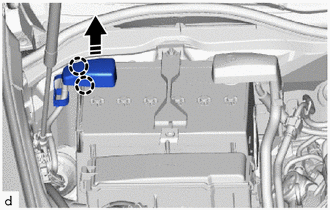

    1. Disengage the 2 claws to open the battery terminal negative connector cover.
      GTY647117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

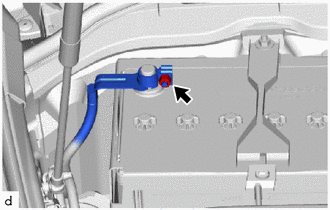

    2. Loosen the nut and disconnect the cable from the negative (-) battery terminal.
      GTY673214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [09/2017 - ]

  3. REMOVE BATTERY

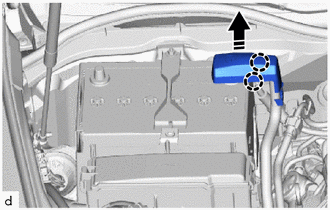

    1. Disengage the 2 claws to open the battery terminal connector cover.
      GTY661886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

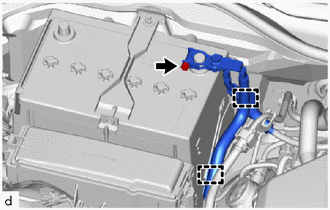

    2. Loosen the nut and disconnect the cable from the positive (+) battery terminal.
      GTY673213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

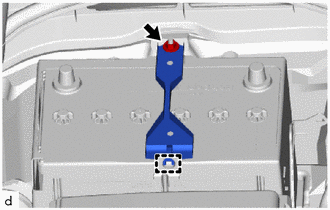

    3. Disengage the 2 clamps and disconnect the cable from the battery insulator.
    4. Remove the nut.
      GTY615797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

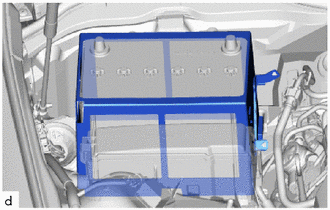

    5. Disengage the guide and remove the battery clamp sub-assembly from the battery carrier assembly.
    6. Remove the battery insulator from the battery.
      GTY615798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

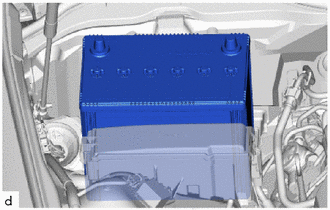

    7. Remove the battery from the vehicle.
      GTY615815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
