Installation [10/2015 - ]: Procedure
- INSTALL FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT
- Apply a light coat of disc brake grease to the front disc brake pads as shown in the illustration.NOTE:
- When applying disc brake grease, use the grease enclosed with a front disc brake pad kit or supplied grease (Part No. 90998-94072) or equivalent.
- There should be no oil or grease on the friction surfaces of the pads and the disc.
Grease - Install the front disc brake anti-squeal shim to each front disc brake pad.NOTE:
When replacing the front disc brake pads with new ones, make sure to replace the front disc brake anti-squeal shim kit at the same time.
*1 Front Disc Brake Anti-squeal Shim
- Apply a light coat of disc brake grease to the front disc brake pads as shown in the illustration.
- INSTALL FRONT DISC BRAKE PAD

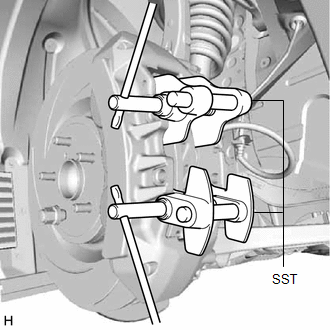

- Using SST, push in the front disc brake piston.
- SST: 09719-7701009719-77020
NOTE:- Make sure the brake fluid does not overflow from the reservoir.
- Do not forcibly push in the front disc brake piston.
- Install the pad wear indicator wire assembly to the front disc brake pad (inner) with a new pad wear indicator retainer.NOTE:
When replacing the front disc brake pads with new ones, make sure to replace the pad wear indicator wire assembly and pad wear indicator retainer at the same time.
- Install the 2 front disc brake pads to the disc brake cylinder assembly.NOTE:
The front disc brake pad with the pad wear indicator wire assembly must be installed to the inside position.
- Insert the pad wear indicator wire assembly to the notch of the disc brake cylinder assembly.

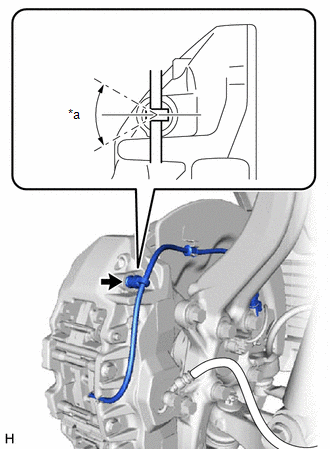

- Connect the bleeder plug cap portion of the pad wear indicator wire assembly to the front disc brake bleeder plug as shown in the illustration.NOTE:
Perform this step without the pad wear indicator wire assembly installed to the front disc brake dust cover clamp.
*a 0° +/- 30° - Connect the pad wear indicator wire assembly to the clamp of the front disc brake dust cover.
- Connect the pad wear indicator wire connector to the front skid control sensor wire.
- Install the 2 pad guide tie rods with the 2 bolts.
Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

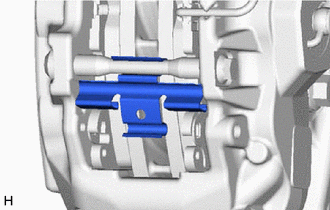

Install the front disc brake anti-rattle spring (lower) to the pad guide tie rod.

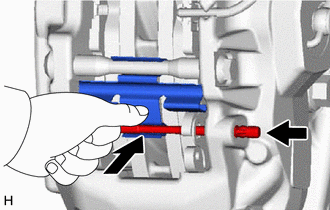

While pushing the front disc brake anti-rattle spring (lower) as shown in the illustration, install the pad guide pin (lower) to the disc brake cylinder assembly.

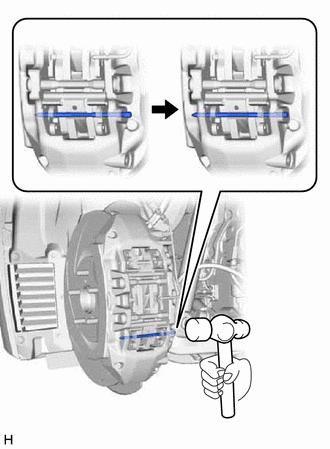

- Using a hammer, install the pad guide pin (lower) by tapping the head of the pad guide pin (lower) until the ring is seated in the disc brake cylinder assembly.NOTE:
- Do not damage the surface of the disc brake cylinder assembly.
- Make sure that the ring of the pad guide pin (lower) is securely engaged with the disc brake cylinder assembly.
- Make sure that the front disc brake anti-rattle spring (lower) is securely installed into the grooves of the pad guide pin (lower).

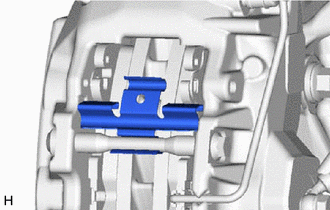

Install the front disc brake anti-rattle spring (upper) to the pad guide tie rod.

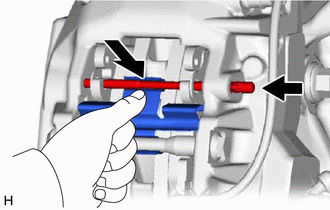

While pushing the front disc brake anti-rattle spring (upper) as shown in the illustration, install the pad guide pin (upper) to the disc brake cylinder assembly.

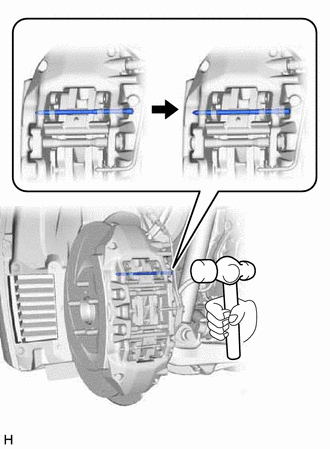

- Using a hammer, install the pad guide pin (upper) by tapping the head of the pad guide pin (upper) until the ring is seated in the disc brake cylinder assembly.NOTE:
- Do not damage the surface of the disc brake cylinder assembly.
- Make sure that the ring of the pad guide pin (upper) is securely engaged with the disc brake cylinder assembly.
- Make sure that the front disc brake anti-rattle spring (upper) is securely installed into the grooves of the pad guide pin (upper).
- Using SST, push in the front disc brake piston.
- INSPECT BRAKE FLUID LEVEL IN RESERVOIR
Refer to ON-VEHICLE INSPECTION [10/2015 - ]
- INSTALL FRONT WHEEL
See step 1
