Components [10/2015 - ]: Illustration

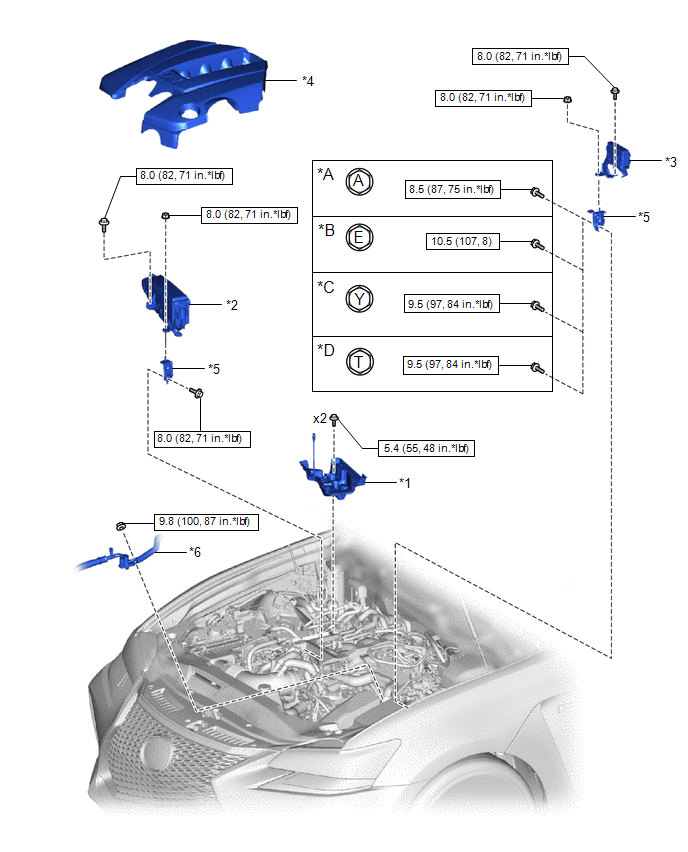

Fig 1: Spark Plug Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Bolt Type A	*B	for Bolt Type B
*C	for Bolt Type C	*D	for Bolt Type D
*1	BATTERY TRAY	*2	NO. 1 ENGINE ROOM RELAY BLOCK
*3	NO. 3 ENGINE ROOM RELAY BLOCK	*4	V-BANK COVER SUB-ASSEMBLY
*5	WIRE HARNESS CLAMP BRACKET	*6	SUCTION PIPE SUB-ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

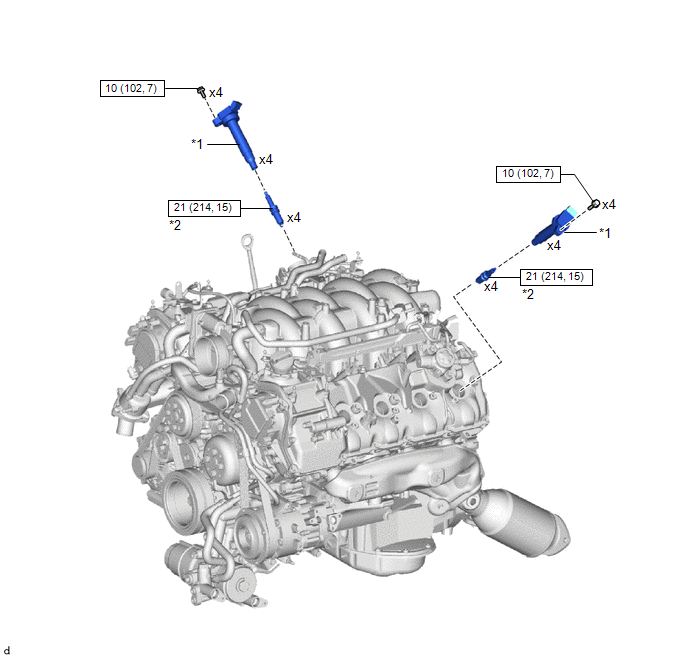

Fig 1: Spark Plug Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
