Removal [09/2017 - ]: Procedure

  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [09/2017 - ]

  2. REMOVE CRUISE CONTROL MAIN SWITCH (w/ Lane Keeping Assist System)

    Refer to PROCEDURE - Step 2

  3. REMOVE STEERING PAD SWITCH ASSEMBLY (w/ Lane Keeping Assist System)

    Refer to PROCEDURE - Step 3

  4. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/o Lane Keeping Assist System)
    1. Disconnect the No. 1 switch wire connector.
      GTY495353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws, and disconnect the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
      GTY495351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

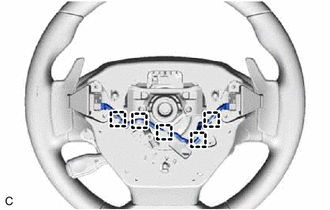

    3. Disengage the 5 guides to remove the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire from the steering wheel assembly.
      GTY458323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors to remove the 2 shift paddle switches (transmission shift switch assemblies) from the No. 1 switch wire.
      GTY458321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 SWITCH WIRE (w/o Lane Keeping Assist System)

    HINT:

    There is no need to remove this unless the No. 2 switch wire is replaced.

    1. Disengage the No. 2 switch wire connector clamp from the steering wheel assembly.
      GTY495355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the No. 2 switch wire from the steering wheel assembly.
      GTY823906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Lane Keeping Assist System)

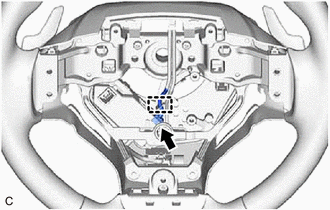

    1. Disengage the guide to disconnect the No. 1 switch wire from the steering wheel assembly.
      GTY640855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 1 switch wire connector.

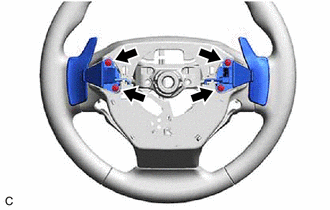

    3. Remove the 4 screws, and disconnect the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
      GTY640861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

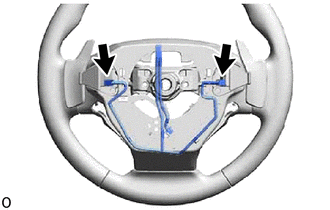

    4. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors to remove the 2 shift paddle switches (transmission shift switch assemblies) from the No. 1 switch wire.
      GTY836310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

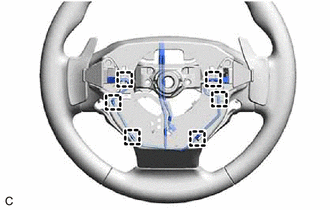

    5. Disengage the 6 guides to remove the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire from the steering wheel assembly.
      GTY677574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
