Parts Location [08/2015 - 08/2019]: Illustration

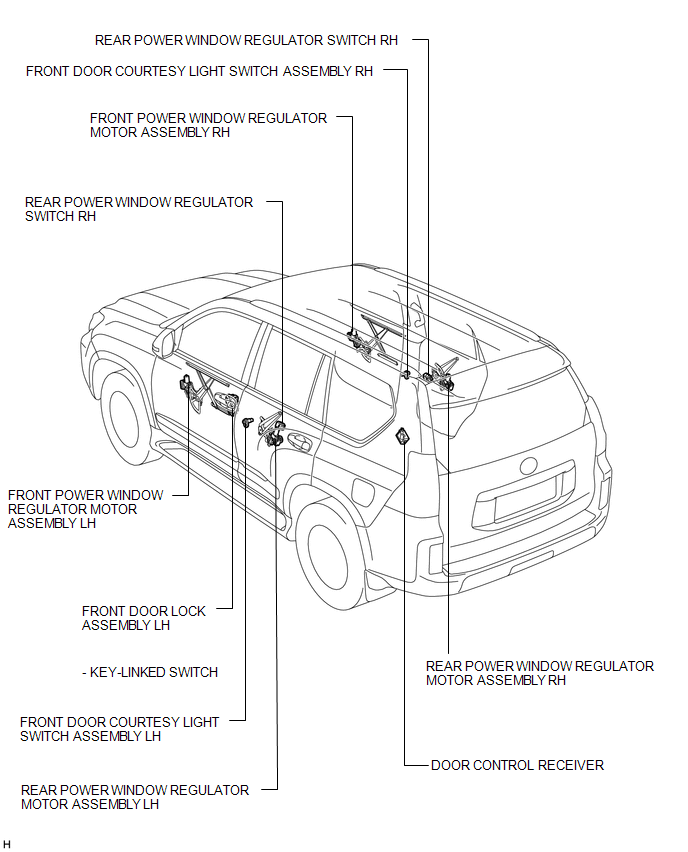

Fig 1: Power Window Control System Components Location (1 Of 2)
GTY653892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

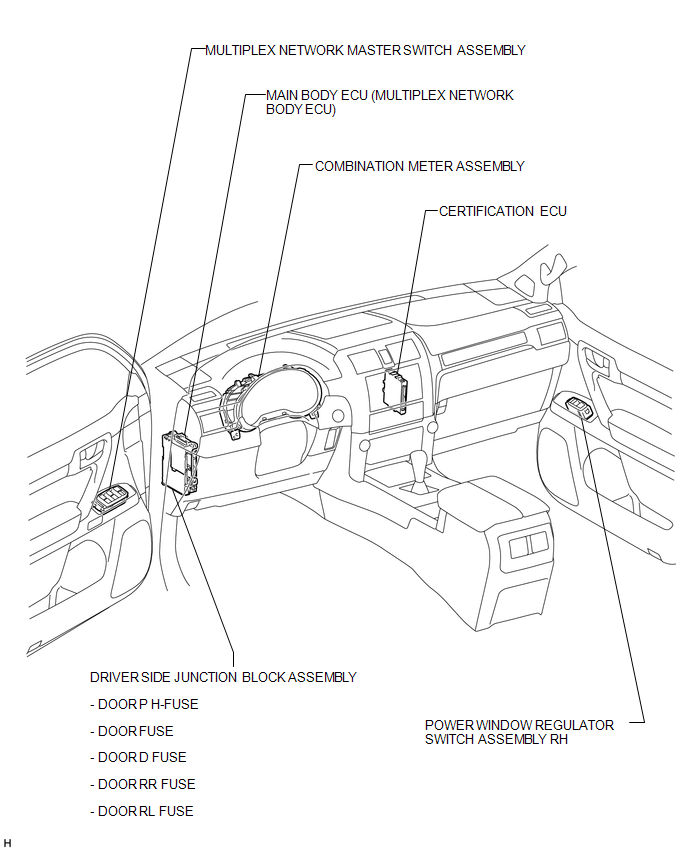

Fig 1: Power Window Control System Components Location (2 Of 2)
GTY456118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
