Inspection [08/2019 - 08/2021]: Procedure
- INSPECT COMBINATION SWITCH ASSEMBLY (CRAWL CONTROL SWITCH)
- Measure the resistance according to the value(s) in the table below.

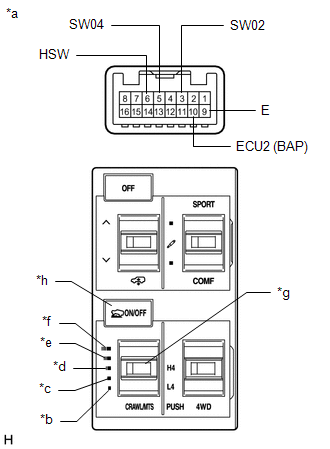

*a Component without harness connected
(Combination Switch)*b Mode 1 (Lo) *c Mode 2 (Lo - Med) *d Mode 3 (Med) *e Mode 4 (Med - Hi) *f Mode 5 (Hi) *g Selector Switch *h Crawl Control ON/OFF Switch Standard Resistance
Tester Connection Switch Condition Specified Condition 3 (SW02) - 9 (E) Selector Switch Mode 1 (Lo) Below 1 Ω Mode 2 (Lo - Med) Mode 3 (Med) 10 kΩ or higher Mode 4 (Med - Hi) Mode 5 (Hi) 10 (ECU2) - 9 (E) Mode 1 (Lo) Below 1 Ω Mode 5 (Hi) Mode 2 (Lo - Med) 10 kΩ or higher Mode 3 (Med) Mode 4 (Med - Hi) 5 (SW04) - 9 (E) Mode 4 (Med - Hi) Below 1 Ω Mode 5 (Hi) Mode 1 (Lo) 10 kΩ or higher Mode 2 (Lo - Med) Mode 3 (Med) 6 (HSW) - 9 (E) Crawl Control ON/OFF Switch ON/OFF: Pressed Below 1 Ω ON/OFF: Not pressed 10 kΩ or higher If the result is not as specified, replace the combination switch assembly (crawl control switch).
- Measure the resistance according to the value(s) in the table below.
