Inspection [08/2021 - ]: Procedure
- INSPECT CENTER CLUSTER MODULE SWITCH LH (CRAWL CONTROL SWITCH)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 7 (SWO2) - 10 (E) Selector Switch Mode 1 (Lo) 100 Ω or less Mode 2 (Lo - Mid) Mode 3 (Mid) 10 kΩ or higher Mode 4 (Mid - Hi) Mode 5 (Hi) 2 (ECU2) - 10 (E) Mode 1 (Lo) 100 Ω or less Mode 5 (Hi) Mode 2 (Lo - Mid) 10 kΩ or higher Mode 3 (Mid) Mode 4 (Mid - Hi) 3 (SWO4) - 10 (E) Mode 4 (Mid - Hi) 100 Ω or less Mode 5 (Hi) Mode 1 (Lo) 10 kΩ or higher Mode 2 (Lo - Mid) Mode 3 (Mid) 6 (HSW) - 10 (E) Crawl Control ON/OFF Switch ON/OFF: Pressed 100 Ω or less ON/OFF: Not pressed 10 kΩ or higher If the result is not as specified, replace the center cluster module switch LH (crawl control switch).

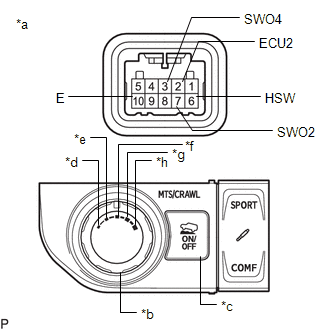

*a Component without harness connected
(Center Cluster Module Switch LH (Crawl Control Switch))*b Selector Switch *c Crawl Control ON/OFF Switch *d Mode 1 (Lo) *e Mode 2 (Lo - Mid) *f Mode 3 (Mid) *g Mode 4 (Mid - Hi) *h Mode 5 (Hi) - Apply battery voltage between the terminals of the center cluster module switch LH (crawl control switch), and check the illumination condition of the center cluster module switch LH (crawl control switch).
*a Component without harness connected
(Center Cluster Module Switch LH (Crawl Control Switch))Standard
Measurement Condition Specified Condition Battery positive (+) → 1 (ILL+)
Battery negative (-) → 5 (ILL-)Illuminates If the result is not as specified, replace the center cluster module switch LH (crawl control switch).
- Measure the resistance according to the value(s) in the table below.
