Removal [08/2015 - 08/2021]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - 08/2021]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 6 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - 08/2021]

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - 08/2021]

  4. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - 08/2021]

  5. REMOVE COMBINATION SWITCH ASSEMBLY (DOWNHILL ASSIST CONTROL SWITCH)

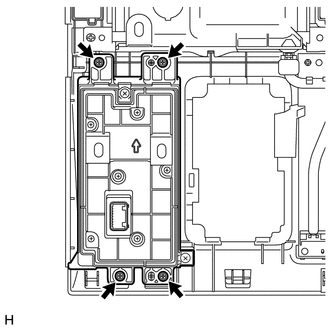

    1. Remove the 4 screws and combination switch (downhill assist control switch) from the upper console panel.
