Removal [08/2015 - ]: Procedure

  1. REMOVE EXHAUST MANIFOLD ASSEMBLY

    (Refer to REMOVAL [08/2015 - ] )

  2. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

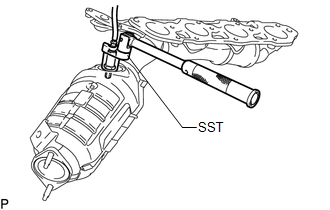

    1. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
      GTY462804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
  3. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
    1. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
      GTY465810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
