Reassembly [08/2015 - 08/2019]: Procedure

1. Install the ECU with the bolt.

   Torque: 2.8 N*m (28 kgf*cm, 24 in.*lbf)

2. Connect the connector.
   NOTE:

   The connectors on both ends of the wire harness between the telescopic motor and ECU are the same shape. When installing them, connect the connectors of the same color.

HINT:

When replacing the steering lock actuator assembly, perform key registration (Refer to REGISTRATION [08/2015 - 08/2019] ).

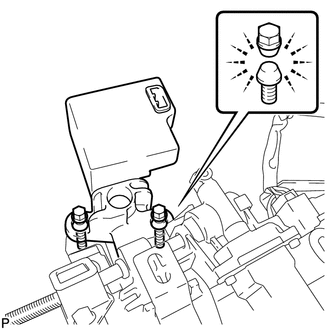

1. Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.
2. Tighten the 2 tapered-head bolt until the bolt heads breaks off.
