Components [08/2015 - ]

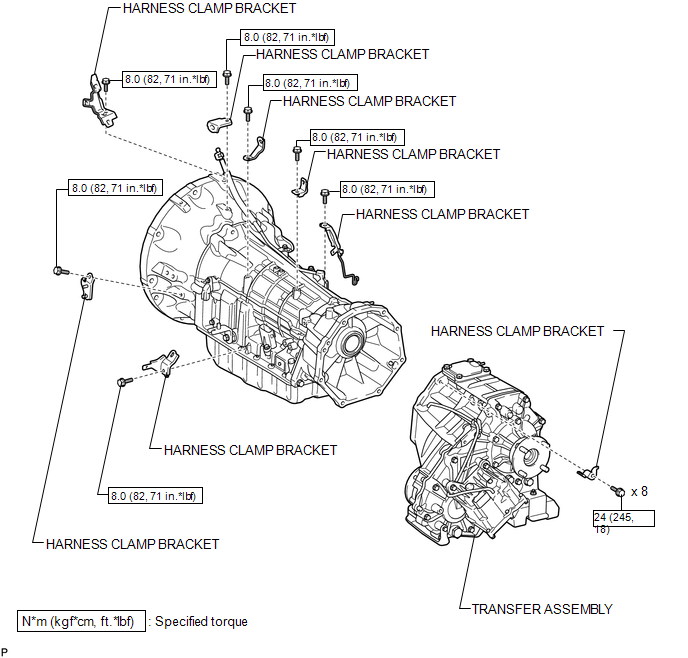

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

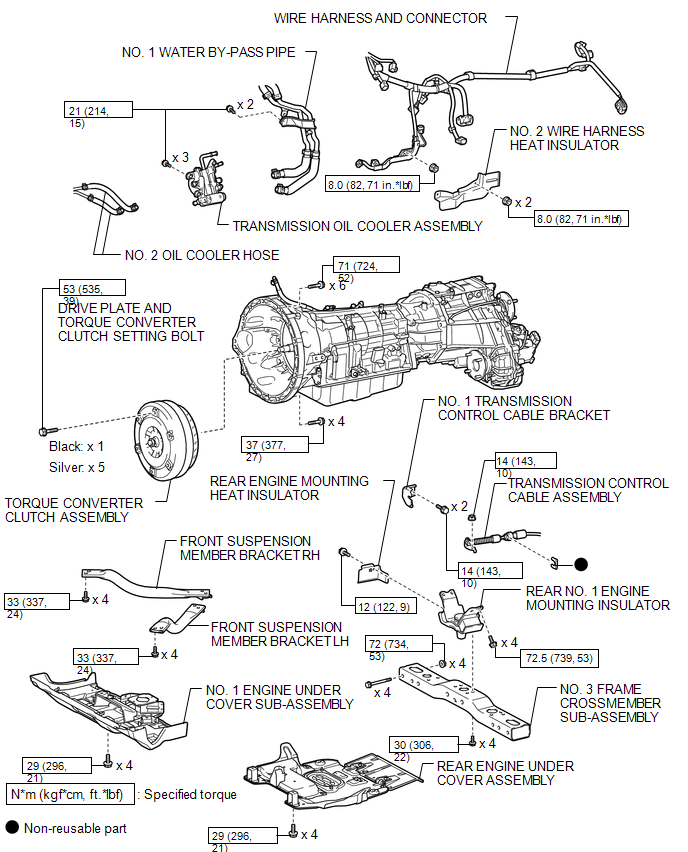

Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
