Components [08/2015 - ]

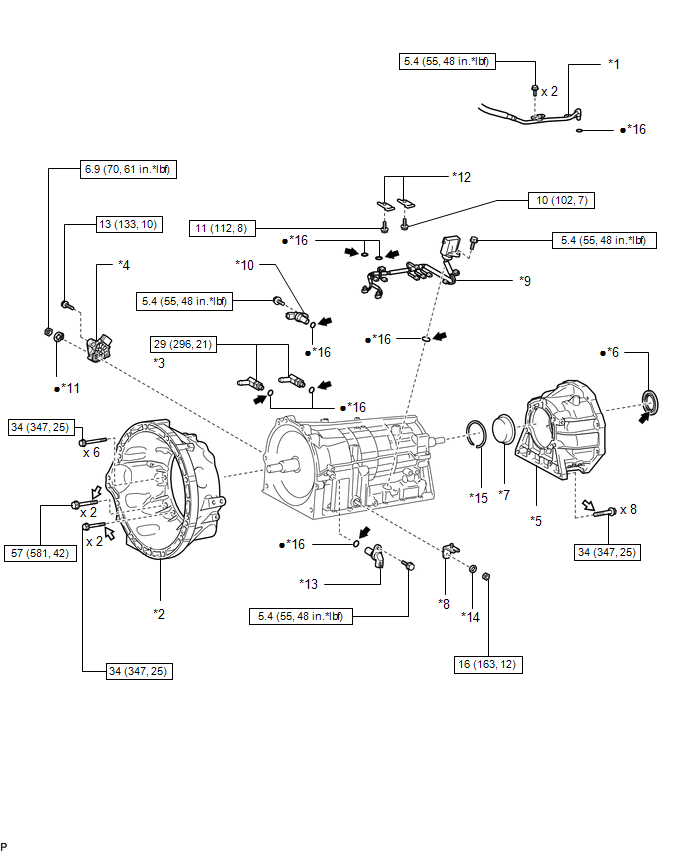

Fig 1: Automatic Transmission Unit Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AUTOMATIC TRANSMISSION BREATHER TUBE	*2	AUTOMATIC TRANSMISSION HOUSING
*3	OIL COOLER TUBE UNION	*4	PARK/NEUTRAL POSITION SWITCH ASSEMBLY
*5	REAR TRANSFER ADAPTER	*6	TRANSFER CASE ADAPTER REAR OIL SEAL
*7	TRANSFER CASE REAR ADAPTER OIL RECEIVER	*8	TRANSMISSION CONTROL SHAFT LEVER LH
*9	TRANSMISSION WIRE	*10	SPEED SENSOR NT
*11	LOCK WASHER	*12	TEMPERATURE SENSOR CLAMP
*13	SPEED SENSOR SP2	*14	SPRING WASHER
*15	SNAP RING	*16	O-RING
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS		Adhesive 1324

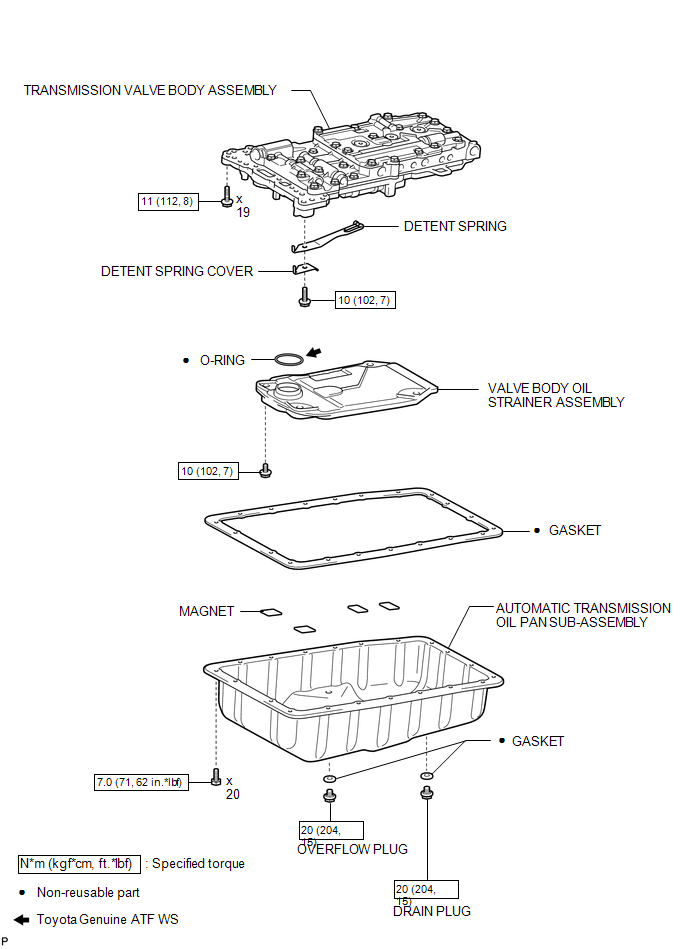

Fig 2: Automatic Transmission Unit Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

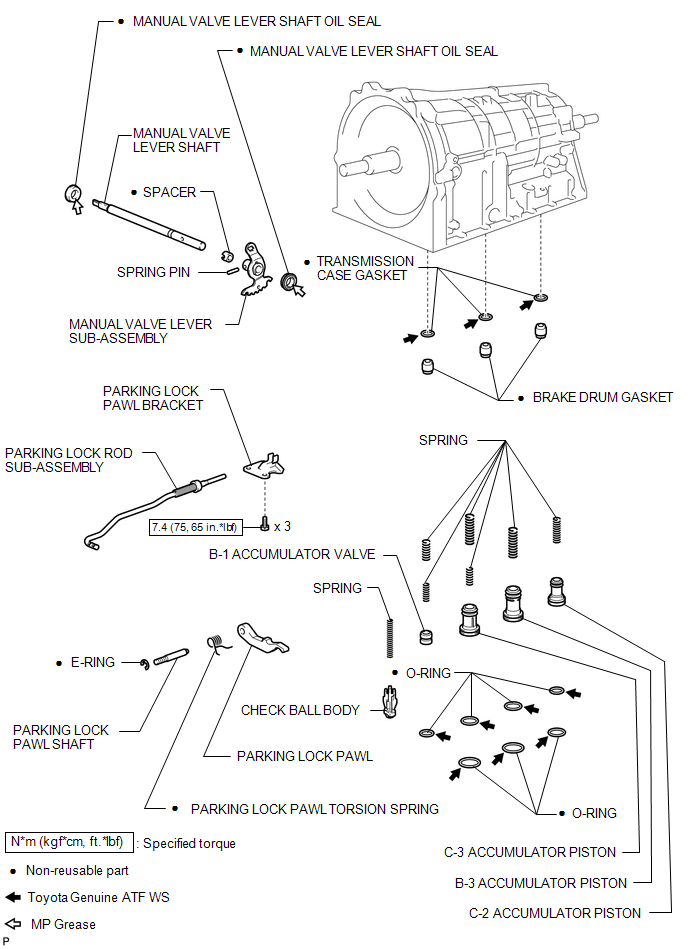

Fig 3: Automatic Transmission Unit Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

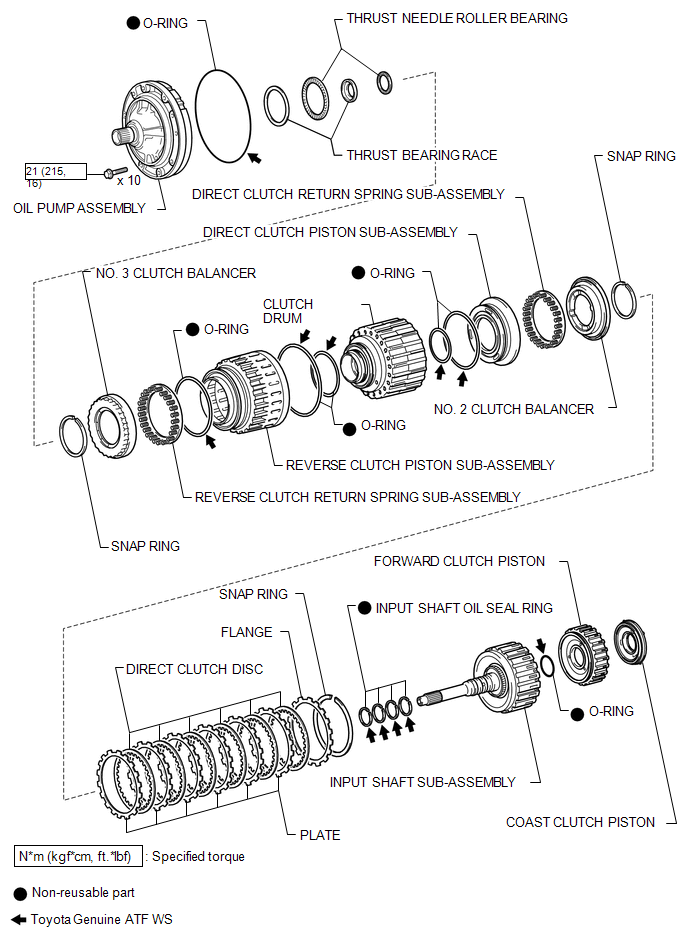

Fig 4: Automatic Transmission Unit Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

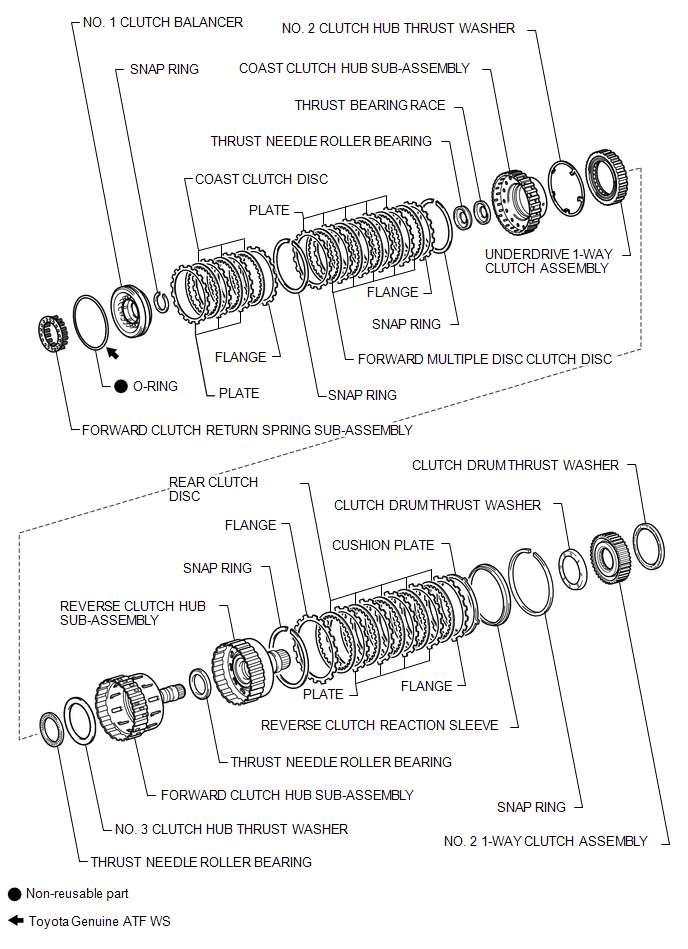

Fig 5: Automatic Transmission Unit Replacement Components (5 Of 8)

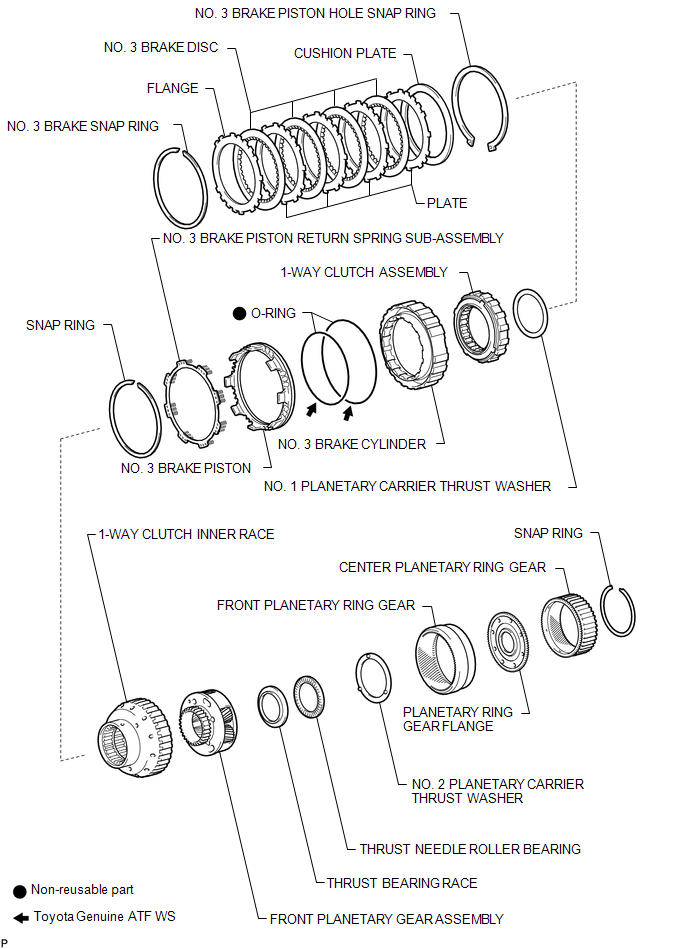

Fig 6: Automatic Transmission Unit Replacement Components (6 Of 8)

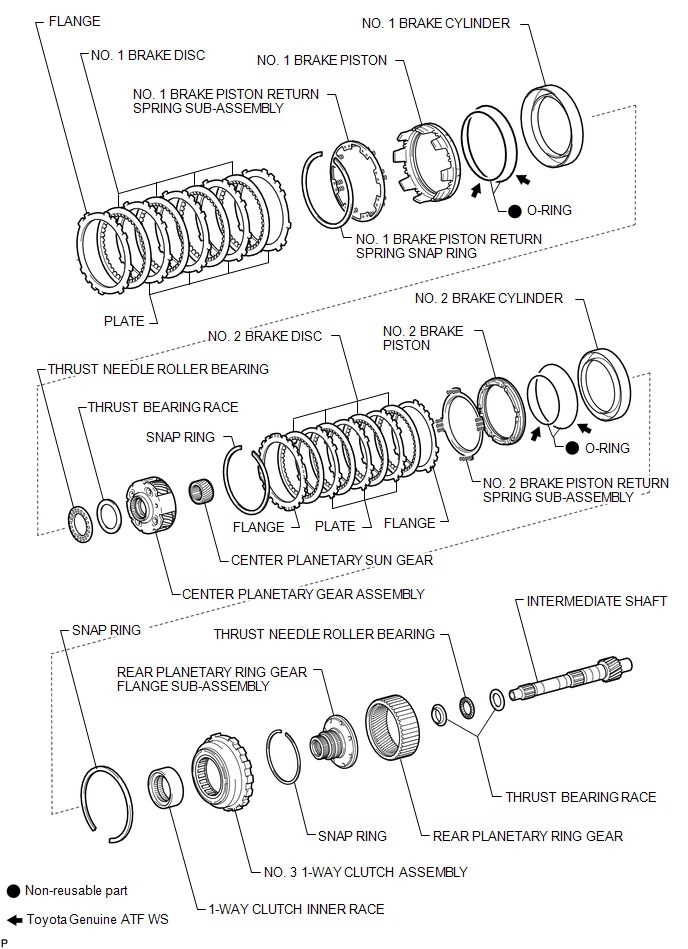

Fig 7: Automatic Transmission Unit Replacement Components (7 Of 8)

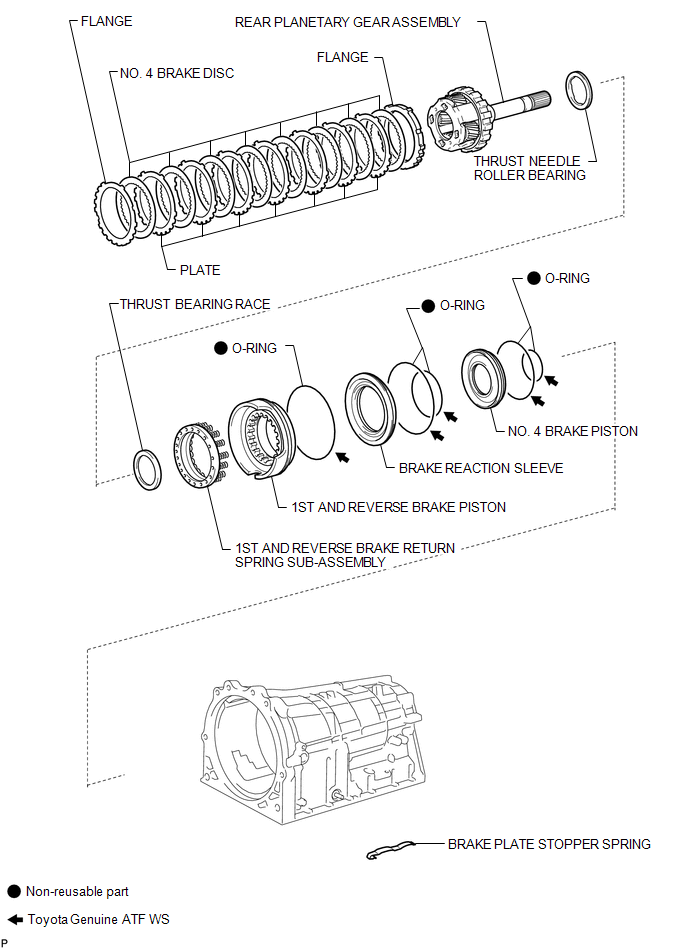

Fig 8: Automatic Transmission Unit Replacement Components (8 Of 8)
