Removal [08/2015 - ]: Procedure

  1. REMOVE SPEED SENSOR NT

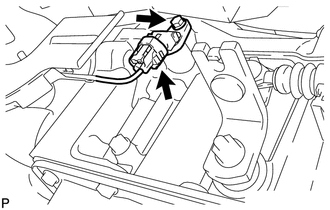

    GTY287049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
    3. Remove the O-ring from the sensor.
  2. REMOVE SPEED SENSOR SP2

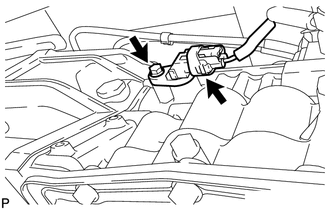

    GTY287043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
    3. Remove the O-ring from the sensor.
