Components [08/2015 - ]

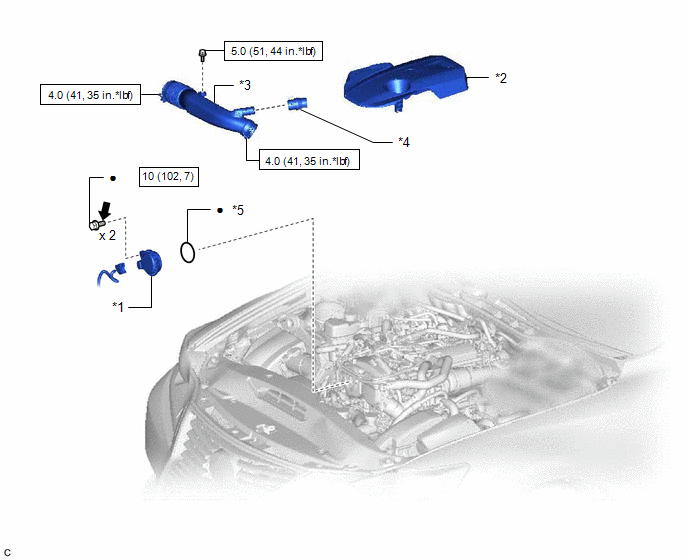

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications

*1	CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	AIR CLEANER HOSE ASSEMBLY	*4	NO. 1 VENTILATION HOSE
*5	O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part
