Components [08/2015 - ]

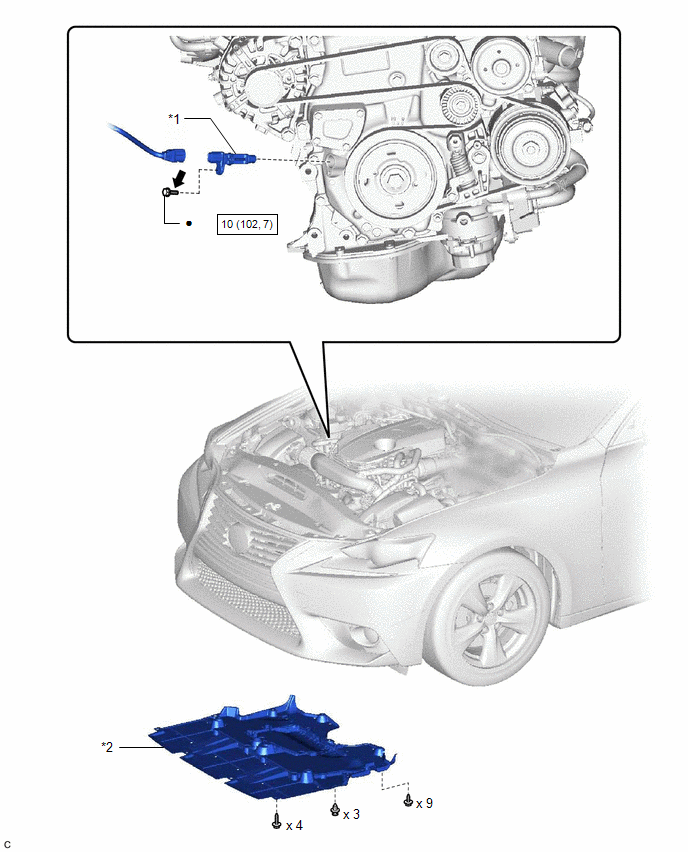

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CRANKSHAFT POSITION SENSOR	*2	ENGINE UNDER COVER
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part
