Components [08/2015 - ]

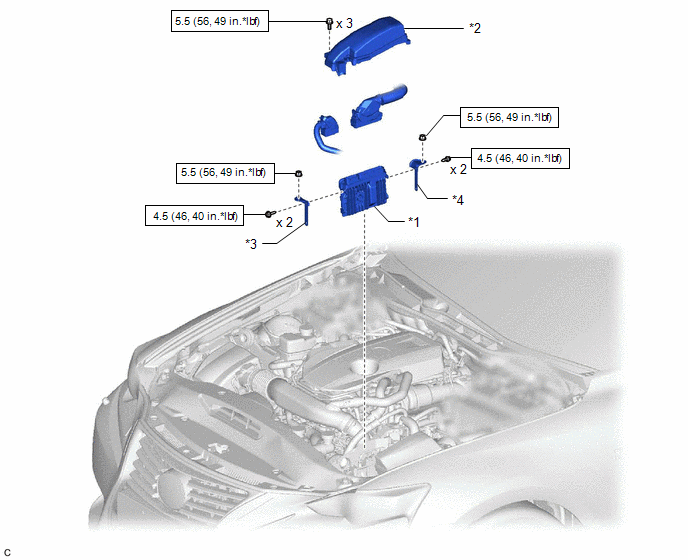

Fig 1: ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ECM	*2	ENGINE ROOM ECU COVER
*3	NO. 1 ECM BRACKET	*4	NO. 2 ECM BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
