Components [08/2015 - ]

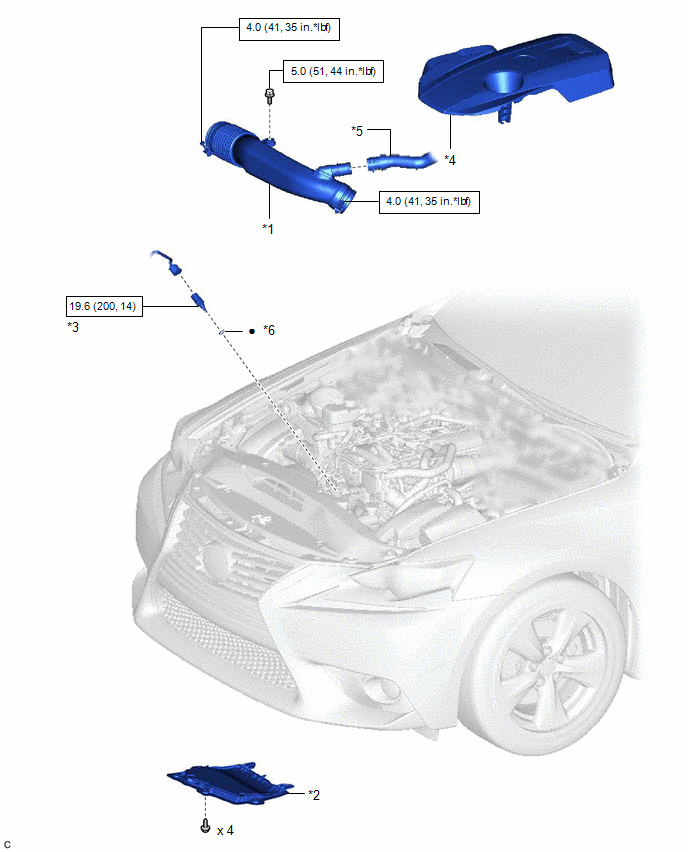

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY675009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CLEANER HOSE ASSEMBLY *2 CENTER NO. 4 ENGINE UNDER COVER
*3 ENGINE COOLANT TEMPERATURE SENSOR *4 NO. 1 ENGINE COVER SUB-ASSEMBLY
*5 NO. 1 VENTILATION HOSE *6 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
