Installation [04/2013 - ]: Procedure

  1. INSTALL CRUISE CONTROL MAIN SWITCH
    1. Connect the connector.

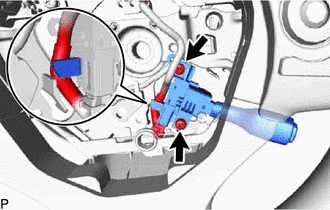

    2. Install the cruise control main switch with the 2 screws shown in the illustration.
      GTY462278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

  2. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [04/2013 - ]
