Components [10/2016 - 09/2020]

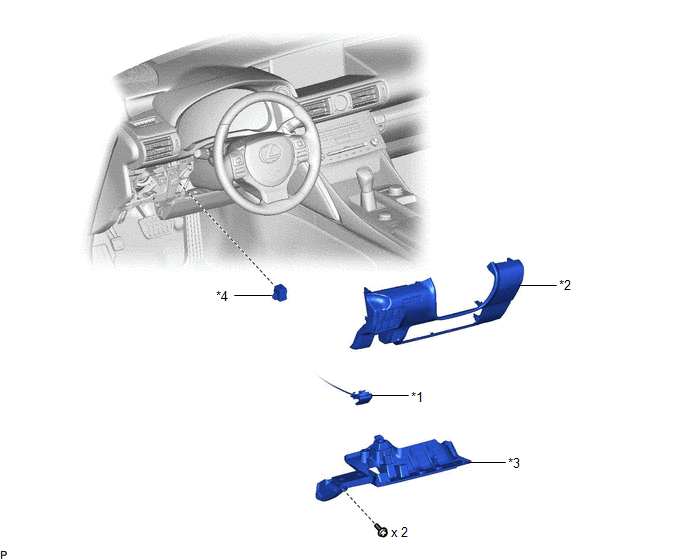

Fig 1: Driving Support Buzzer Replacement Components [10/2016 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	*2	LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	*4	SKID CONTROL BUZZER
