Components [04/2013 - 09/2020]

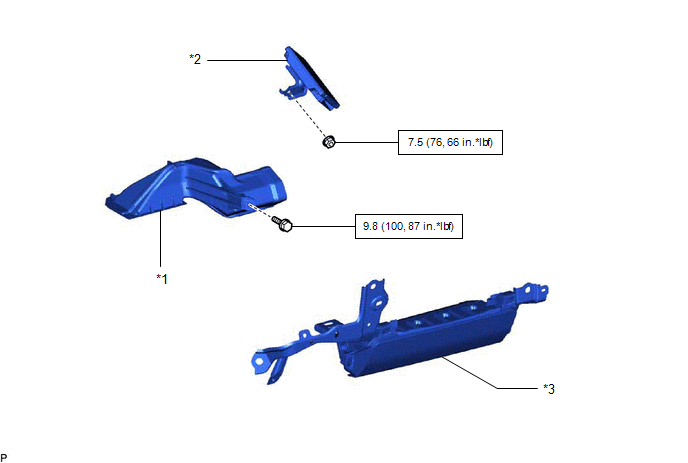

Fig 1: Driving Support ECU Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR DUCT SUB-ASSEMBLY	*2	DRIVING SUPPORT ECU ASSEMBLY
*3	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
