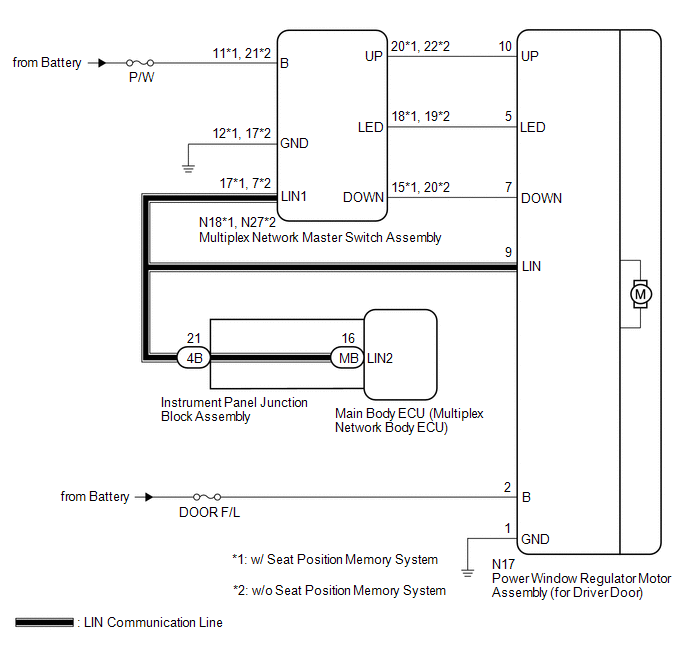

Driver Side Power Window does not Operate with Power Window Master Switch [04/2013 - ]: Wiring Diagram

GTY458389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
