Components [04/2013 - ]

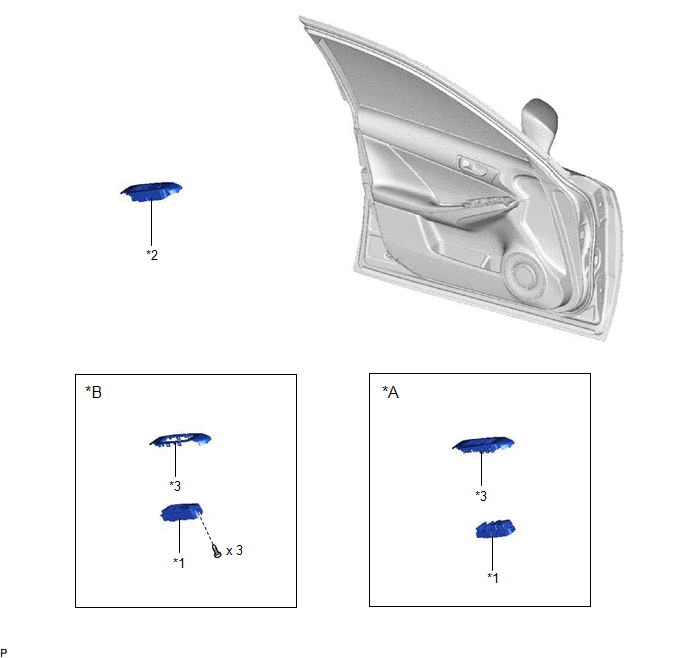

Fig 1: Power Window Master Switch Replacement Components
GTY456491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Screw *B w/ Screw
*1 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY *2 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
*3 FRONT DOOR ARMREST BASE PANEL - -
