Installation [04/2013 - 10/2016]: Procedure

  1. INSTALL BRAKE ACTUATOR BOLT CUSHION
    1. Install the 3 brake actuator bolt cushions to the brake actuator bracket assembly.
    2. Install the 3 brake actuator case collars to the brake actuator bolt cushions.
      NOTE:

      Make sure the brake actuator case collars are in full contact with the brake actuator bolt cushions.

  2. INSTALL BRAKE ACTUATOR ASSEMBLY
    1. Temporarily install the brake actuator assembly to the brake actuator bracket assembly with the 3 bolts.

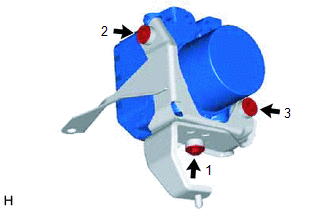

      Fig 1: Brake Actuator Assembly Tightening Sequence [04/2013 - 10/2016]
      GTY458339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not remove the hole plugs of a new brake actuator assembly before connecting the brake lines because the brake actuator assembly is filled with brake fluid.
      • Do not hold the brake actuator assembly by the connector.
    2. Tighten the 3 bolts in the order shown in the illustration.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  3. INSTALL NO. 5 BRAKE ACTUATOR BRACKET
    1. Install the No. 5 brake actuator bracket with the bolt.

      Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

  4. INSTALL BRAKE ACTUATOR WITH BRACKET
    1. Temporarily install the brake actuator with bracket with the 2 bolts and nut.

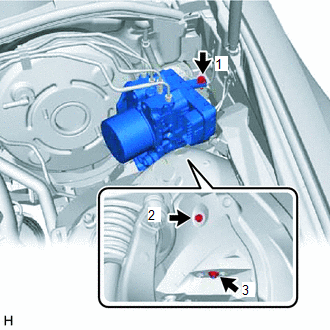

      Fig 2: Brake Actuator With Bracket With Bolts And Nut Tightening Sequence [04/2013 - 10/2016]
      GTY466283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not damage the brake lines.
      • Do not hold the brake actuator with bracket by the connector.

      HINT:

      Install the brake actuator with bracket while avoiding the brake lines.

    2. Tighten the 2 bolts and nut in the order shown in the illustration.

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

    3. Temporarily tighten the 4 brake lines to the correct position on the brake actuator assembly as shown in the illustration.

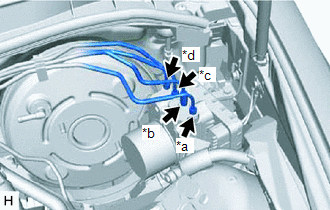

      GTY460829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a To Front Wheel Cylinder Assembly RH
      *b To Front Wheel Cylinder Assembly LH
      *c To Rear Wheel Cylinder Assembly RH
      *d To Rear Wheel Cylinder Assembly LH
    4. Using a union nut wrench, fully tighten each brake line.

      Torque: 15.2 N.m (155 kgf/cm, 11 ft.lbf)

      NOTE:
      • Do not kink or damage the brake lines.
      • Do not allow the brake lines to twist and interfere with other parts or vehicle body during tightening.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
      • Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench.

        Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016]

    5. Connect the connector to the brake actuator assembly and lock the lock lever.

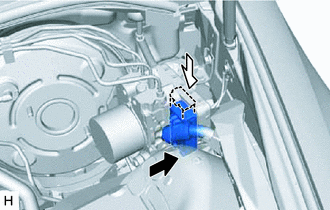

      GTY456409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connect the connector
      Lock the lock lever
      NOTE:
      • Make sure that the connector is locked securely.
      • Make sure that the actuator connector can be connected smoothly. Do not allow water, oil or dirt to enter the connector.
  5. INSTALL REAR NO. 1 BRAKE TUBE
    1. Using a union nut wrench, connect the rear No. 1 brake tube to the brake actuator assembly.

      Torque: 15.2 N.m (155 kgf/cm, 11 ft.lbf)

      NOTE:
      • Do not kink or damage the rear No. 1 brake tube.
      • Do not allow the rear No. 1 brake tube to twist and interfere with other parts or vehicle body during tightening.
      • Do not allow any foreign matter such as dirt or dust to enter the rear No. 1 brake tube from the connecting parts.
      • Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench.

        Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016]

    2. Engage the clamp to install the rear No. 1 brake tube.
  6. INSTALL FRONT NO. 1 BRAKE TUBE
    1. Using a union nut wrench, connect the front No. 1 brake tube to the brake actuator assembly.

      Torque: 15.2 N.m (155 kgf/cm, 11 ft.lbf)

      NOTE:
      • Do not kink or damage the front No. 1 brake tube.
      • Do not allow the front No. 1 brake tube to twist and interfere with other parts or vehicle body during tightening.
      • Do not allow any foreign matter such as dirt or dust to enter the front No. 1 brake tube from the connecting parts.
      • Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench.

        Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016]

    2. Engage the clamp to install the front No. 1 brake tube.
  7. CONNECT UNION TO CHECK VALVE HOSE
    1. Connect the union to check valve hose to the brake booster assembly, and slide the clip to secure it.
  8. INSTALL BRAKE MASTER CYLINDER O-RING

    Refer to PROCEDURE - Step 2

  9. INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016]

  11. BLEED BRAKE SYSTEM

    Refer to BLEEDING [04/2013 - 10/2016]

  12. INSTALL FRONT WHEEL LH

    Torque: 103 N.m (1050 kgf/cm, 76 ft.lbf)

  13. PERFORM YAW RATE AND ACCELERATION SENSOR ZERO POINT CALIBRATION AND STORE SYSTEM INFORMATION

    Refer to CALIBRATION [04/2013 - 10/2016]

  14. PERFORM TEST MODE INSPECTION

    Refer to TEST MODE PROCEDURE [04/2013 - 10/2016]

  15. INSPECT BRAKE ACTUATOR USING TECHSTREAM

    Refer to ON-VEHICLE INSPECTION [04/2013 - 09/2020]

  16. CHECK FOR AND CLEAR DTCS

    Refer to DTC CHECK / CLEAR [04/2013 - 10/2016]
