Components [04/2013 - 10/2017]

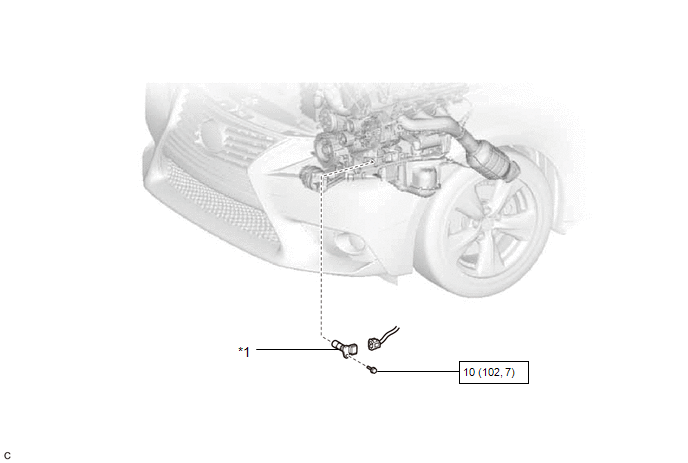

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CRANKSHAFT POSITION SENSOR	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
