Components [04/2013 - 10/2017]

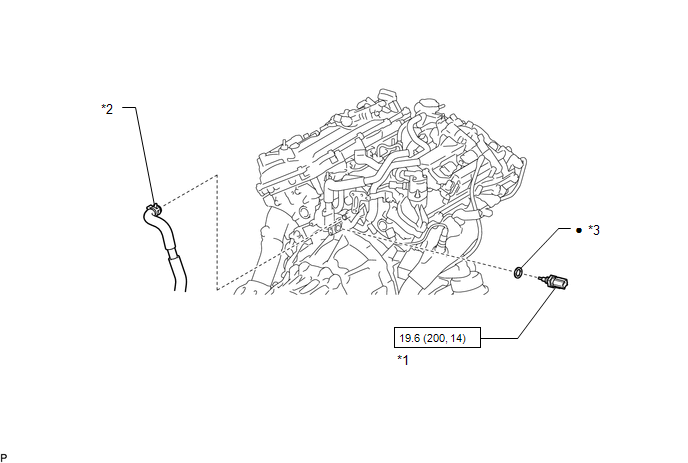

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE COOLANT TEMPERATURE SENSOR	*2	WATER BY-PASS HOSE
*3	GASKET	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part
