Removal [04/2013 - 10/2017]: Procedure

  1. REMOVE FUEL INJECTOR SEAL

    Refer to REMOVAL [04/2013 - 10/2017]

  2. REMOVE KNOCK CONTROL SENSOR

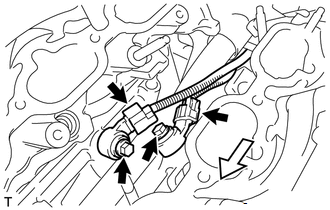

    1. Disconnect the 2 knock control sensor connectors.
      GTY471224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Engine Front
    2. Remove the 2 bolts and 2 knock control sensors from the cylinder block sub-assembly.
