Removal [04/2013 - 10/2017]: Procedure

  1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

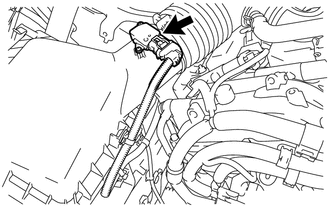

    1. Disconnect the mass air flow meter sub-assembly connector.
      GTY460622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

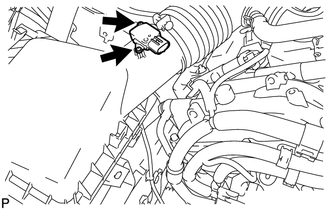

    2. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      GTY412636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
