Components [04/2013 - 10/2016]

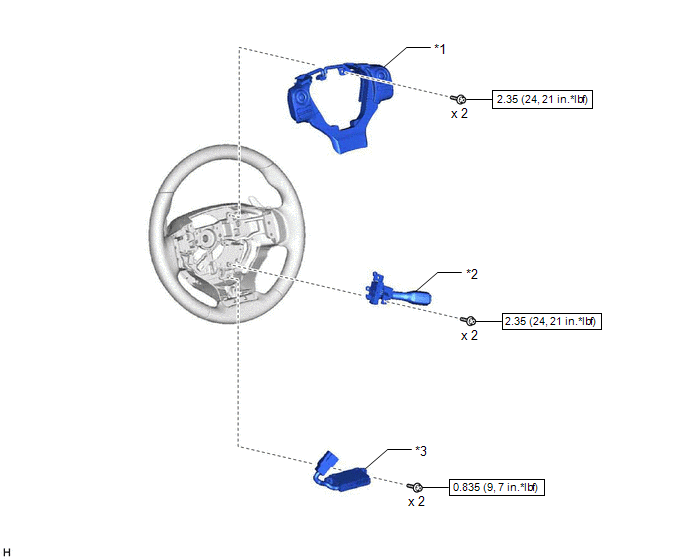

Fig 1: Heated Steering Wheel Controller Replacement Components With Torque Specifications [04/2013 - 10/2016]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING PAD SWITCH ASSEMBLY	*2	CRUISE CONTROL MAIN SWITCH
*3	STEERING WHEEL HEATER CONTROL ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
