Components [04/2013 - 09/2020]

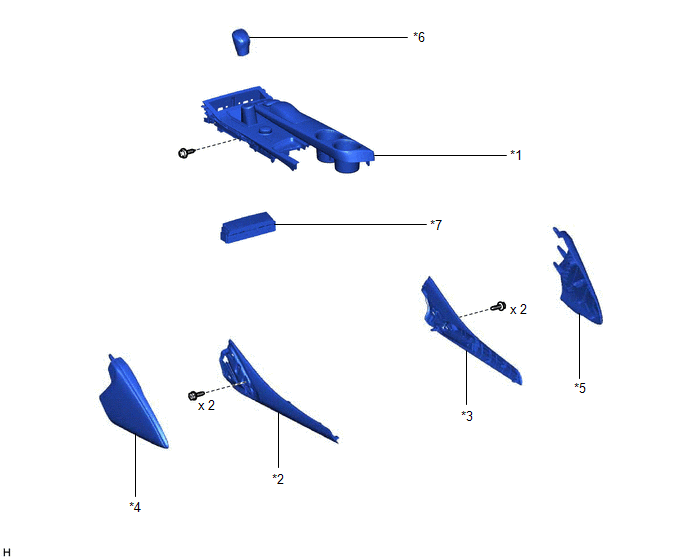

Fig 1: Steering Heater Switch Replacement Components [04/2013 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONSOLE PANEL SUB-ASSEMBLY	*2	FRONT PANEL GARNISH LH
*3	FRONT PANEL GARNISH RH	*4	INSTRUMENT PANEL FINISH PANEL END LH
*5	INSTRUMENT PANEL FINISH PANEL END RH	*6	SHIFT LEVER KNOB SUB-ASSEMBLY
*7	STEERING HEATER SWITCH (REFRESHING SEAT SWITCH)	-	-
