Inspection [04/2013 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (w/ Seat Position Memory System)
- Check that the LED illuminates.

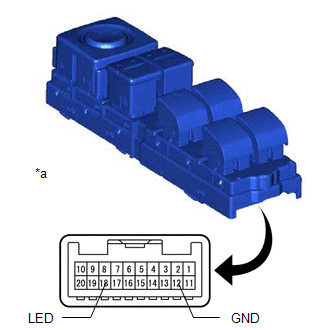

*a Component without harness connected
(Multiplex Network Master Switch Assembly)- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) → 18 (LED)
Battery negative (-) → 12 (GND)LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.
- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
- Check that the LED illuminates.
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (w/o Seat Position Memory System)
- Check that the LED illuminates.
*a Component without harness connected
(Multiplex Network Master Switch Assembly)- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) → 19 (LED)
Battery negative (-) → 17 (GND)LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.
- Apply battery voltage to the multiplex network master switch assembly and check that the LED illuminates.
- Check that the LED illuminates.
