Installation [04/2013 - 09/2020]: Procedure

  1. INSTALL OUTER MIRROR HEATER SWITCH ASSEMBLY

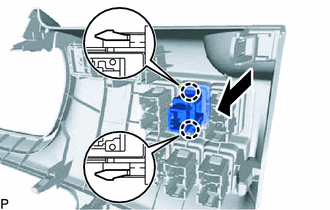

    1. Engage the 2 claws to install the outer mirror heater switch assembly.
      GTY459858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 34 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 35 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 35 [10/2017 - 09/2020]

  3. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 36 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 36 [10/2017 - 09/2020]

  4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 36 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 37 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 37 [10/2017 - 09/2020]
