Cruise Control System (Service Information)
›
Object Recognition Camera
›
Components [09/2015 - ]
›
Illustration
Components [09/2015 - ]: Illustration

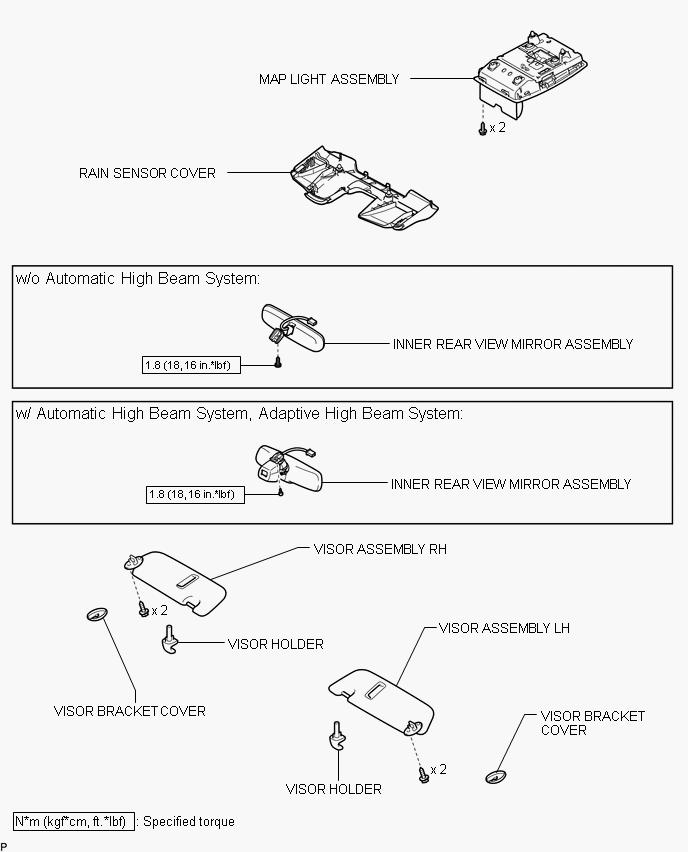

Fig 1: Object Recognition Camera Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

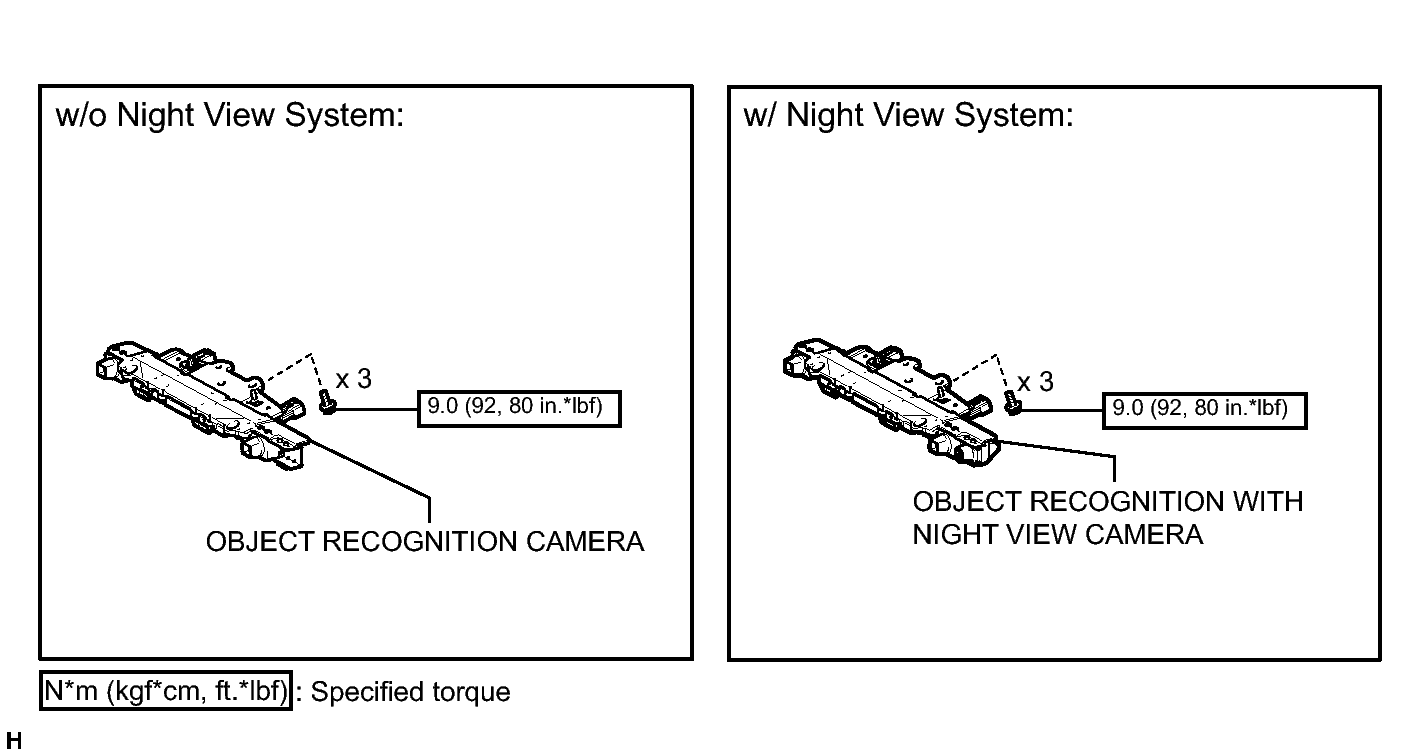

Fig 1: Object Recognition Camera Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
