Removal [09/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. REMOVE DECK TRIM SIDE BOARD LH

    Refer to PROCEDURE - Step 7

  4. REMOVE DECK TRIM SIDE BOARD RH

    Refer to PROCEDURE - Step 6

  5. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 12

  6. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE ROPE HOOK

    Refer to PROCEDURE - Step 5

  8. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler)

    Refer to PROCEDURE - Step 9

  9. REMOVE NO. 1 COOLER COVER (w/ Rear Cooler)

    Refer to PROCEDURE - Step 14

  10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 11

  11. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 14

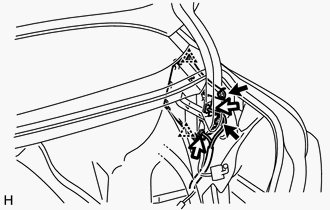

  12. REMOVE OBJECT RECOGNITION ECU
    GTY636886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 2 connectors.
    2. Remove the 2 bolts.
    3. Detach the 2 clips and remove the object recognition ECU.
      NOTE:

      Do not drop or subject the object recognition ECU to strong shocks.
