Parts Location [09/2015 - ]: Illustration

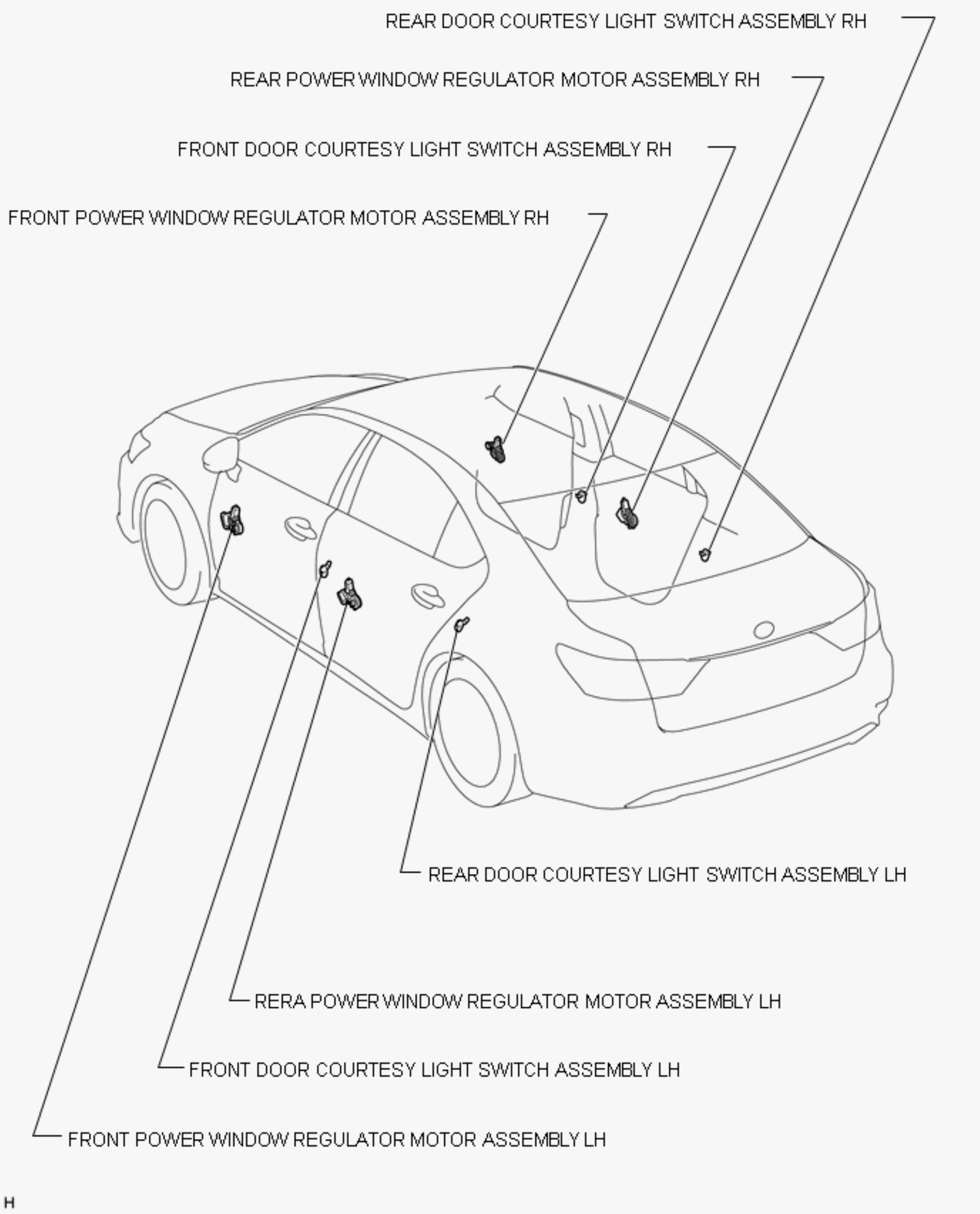

Fig 1: Power Window Control System Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

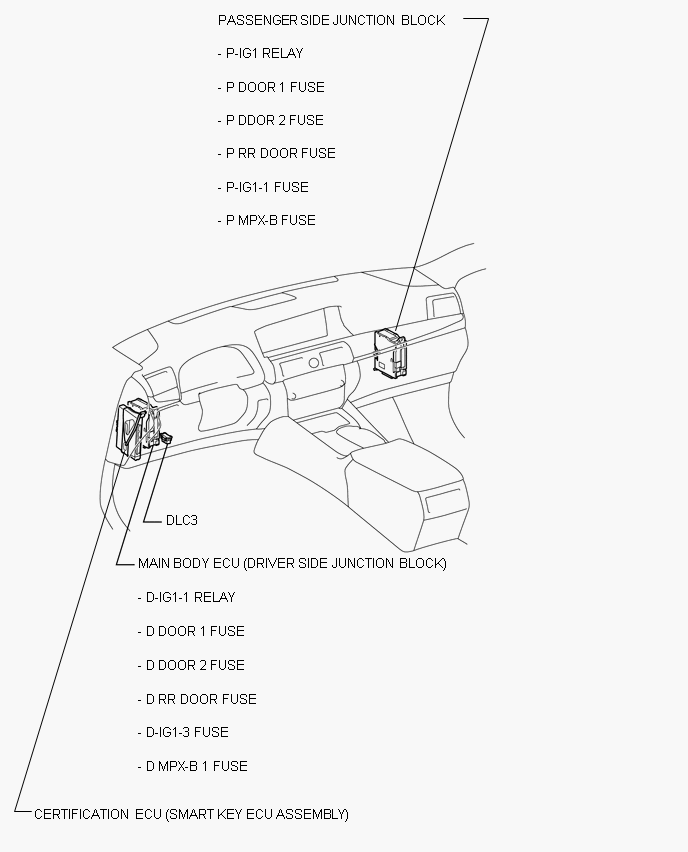

Fig 1: Power Window Control System Replacement Component (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

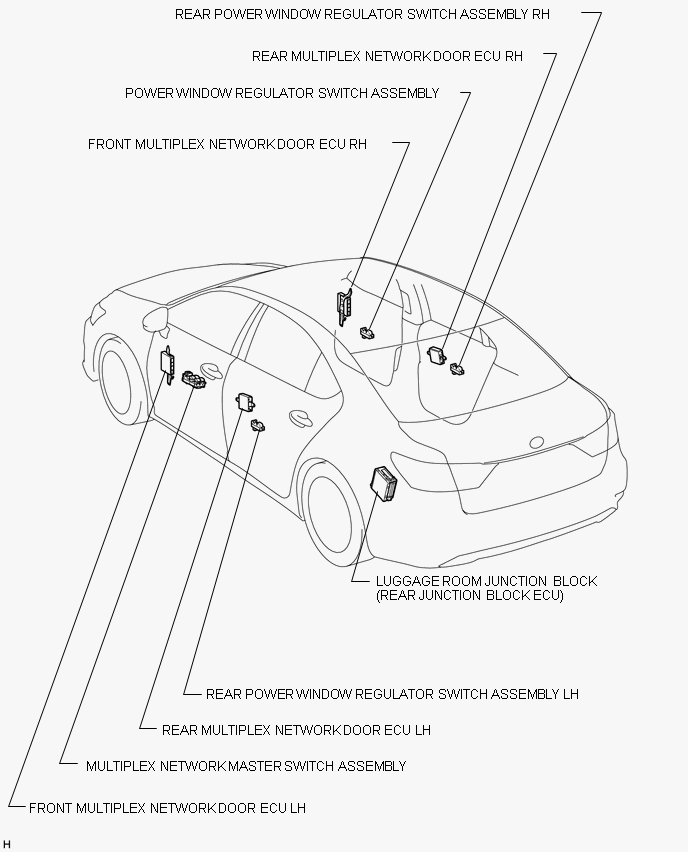

Fig 1: Power Window Control System replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Power Window Control System Replacement Component (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
