Inspection [09/2015 - ]: Procedure
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
- Check that the LED illuminates.

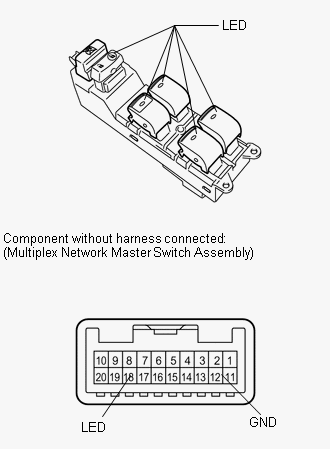

- Apply battery voltage to the master switch and check that the LED illuminates.
OK
Measurement Condition Specified Condition Battery positive (+) → 18 (LED)
Battery negative (-) → 12 (GND)LED illuminates - If the result is not as specified, replace the multiplex network master switch assembly.
- Check that the LED illuminates.
