Brake Control System - Service Information
›
Yaw Rate And Acceleration Sensor
›
Components [09/2015 - ]
›
Illustration
Components [09/2015 - ]: Illustration

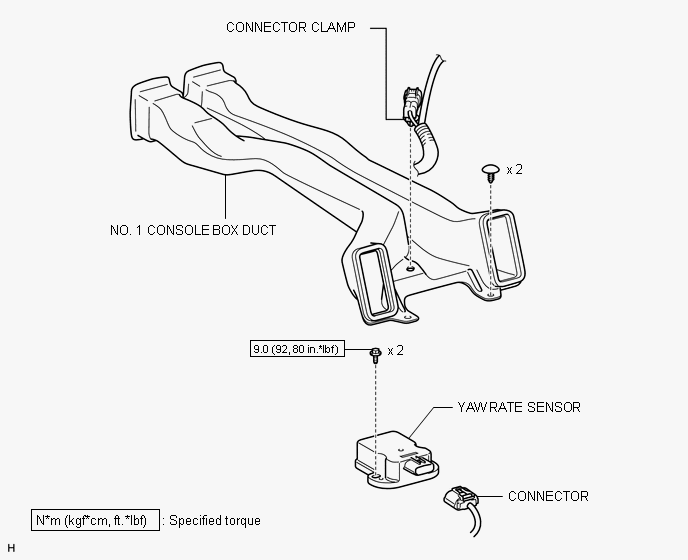

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
