Components [09/2015 - ]: Illustration

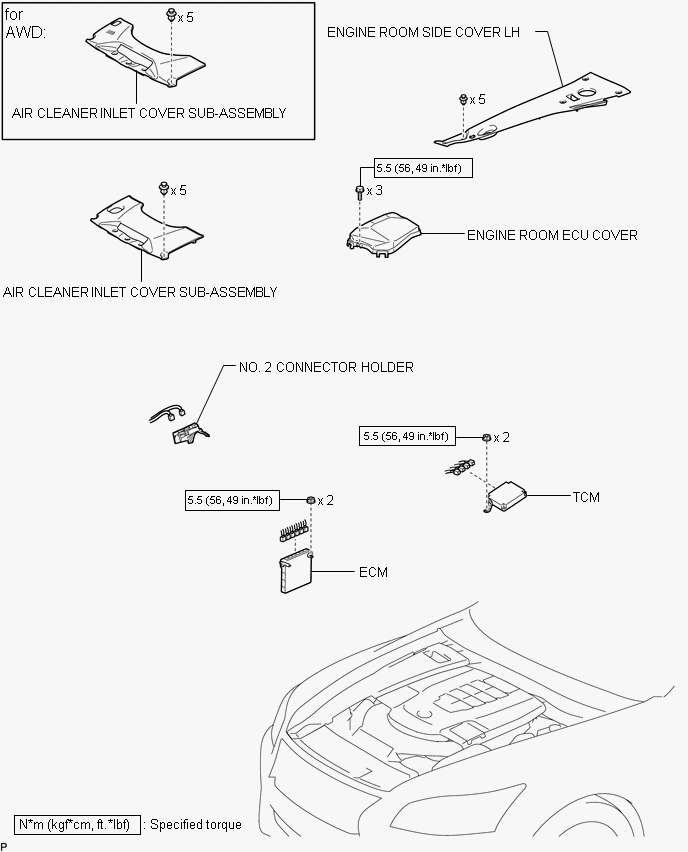

Fig 1: ECM Component Loaction With Torque Specifications

GTY627905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
