Components [09/2015 - ]: Illustration

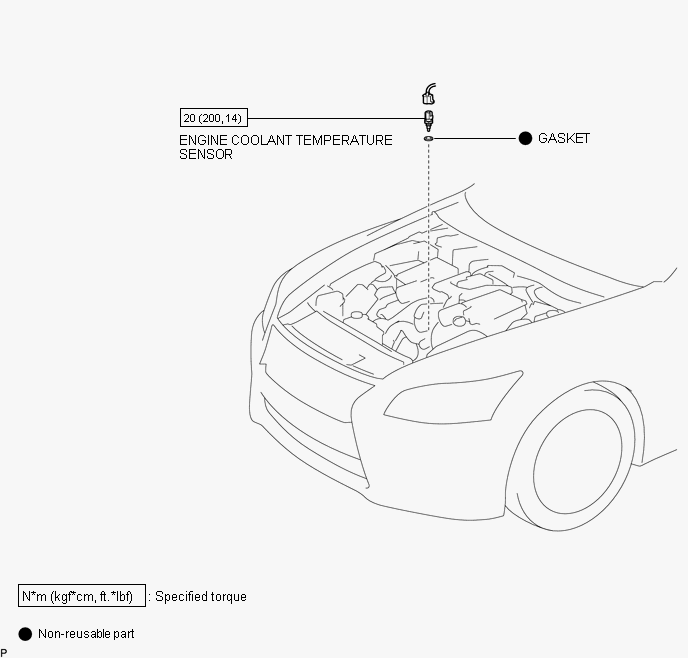

Fig 1: Engine Coolant Temperature Sensor Component Location With Torque Specifications
GTY653491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
