On-Vehicle Inspection [09/2015 - ]: Procedure

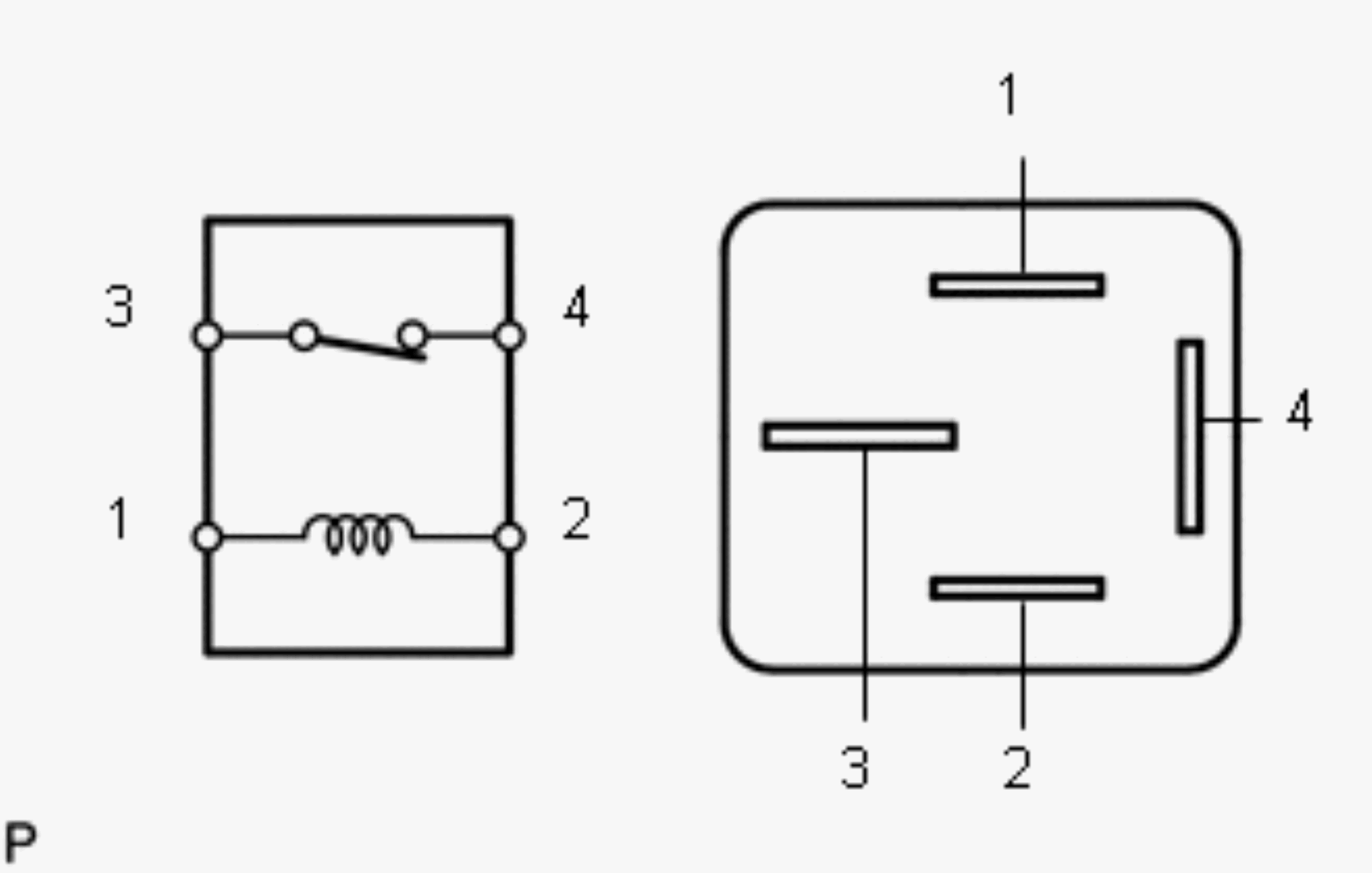

- INSPECT FUEL PUMP RELAY (F/PMP)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 4 when no battery voltage is applied to terminals 1 and 2 Below 1 Ω 3 - 4 when battery voltage is applied to terminals 1 and 2 10 kΩ or higher If the result is not as specified, replace the fuel pump relay.
- Measure the resistance according to the value(s) in the table below.
