Components [09/2015 - ]: Illustration

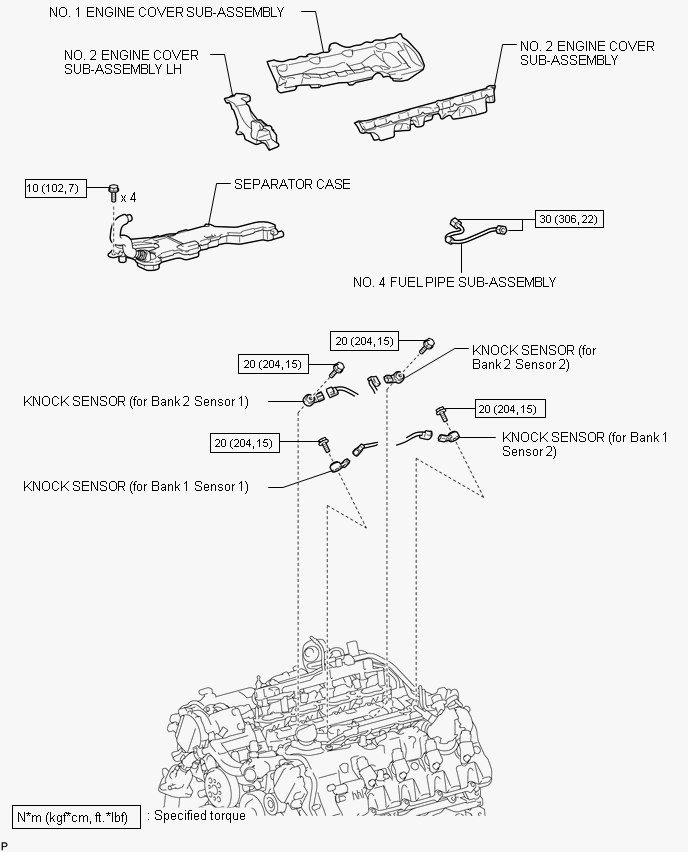

Fig 1: Knock Sensor Component Locations With Torque Specifications
GTY657100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
