Installation [09/2015 - ]: Procedure

  1. INSTALL HEIGHT CONTROL COMPRESSOR
    1. Install the 3 bushings and bracket to the height control compressor with the 3 bolts.
      GTY685841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)

    2. Push the connector into the housing until a clicking sound is heard.
    3. Attach the 3 clamps.

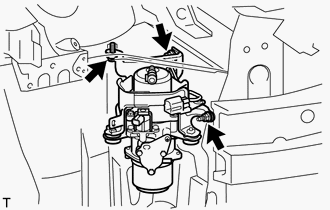

    4. Install the height control sensor with the bolt and 2 nuts.
      GTY621274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

    5. Connect the height control tube (Refer to PRECAUTION [09/2015 - ] ).
    6. Connect the height control filter to the bumper reinforcement.

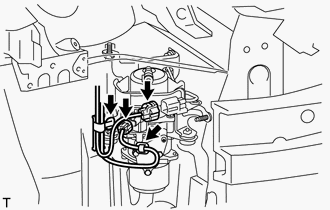

    7. Connect the 2 connectors and attach the 2 clamps.
      GTY678433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  3. INSTALL COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 15

  4. PERFORM INITIALIZATION

    (Refer to INITIALIZATION [09/2015 - ] )

    NOTE:

    Certain systems need to be initialized after disconnecting and reconnecting the cable to the negative (-) battery terminal.

  5. CHECK SRS WARNING LIGHT

    (Refer to DIAGNOSIS SYSTEM [09/2015 - ] )

  6. INSPECT FOR AIR LEAK

    (Refer to OPERATION CHECK [09/2015 - ] )

  7. INSTALL FRONT FENDER LINER RH
    1. Install the 2 bolts.
  8. INSTALL FRONT BUMPER COVER

    (Refer to INSTALLATION [09/2015 - ] )

  9. INSTALL FRONT WHEEL RH

    Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)
