Components [09/2015 - ]: Illustration

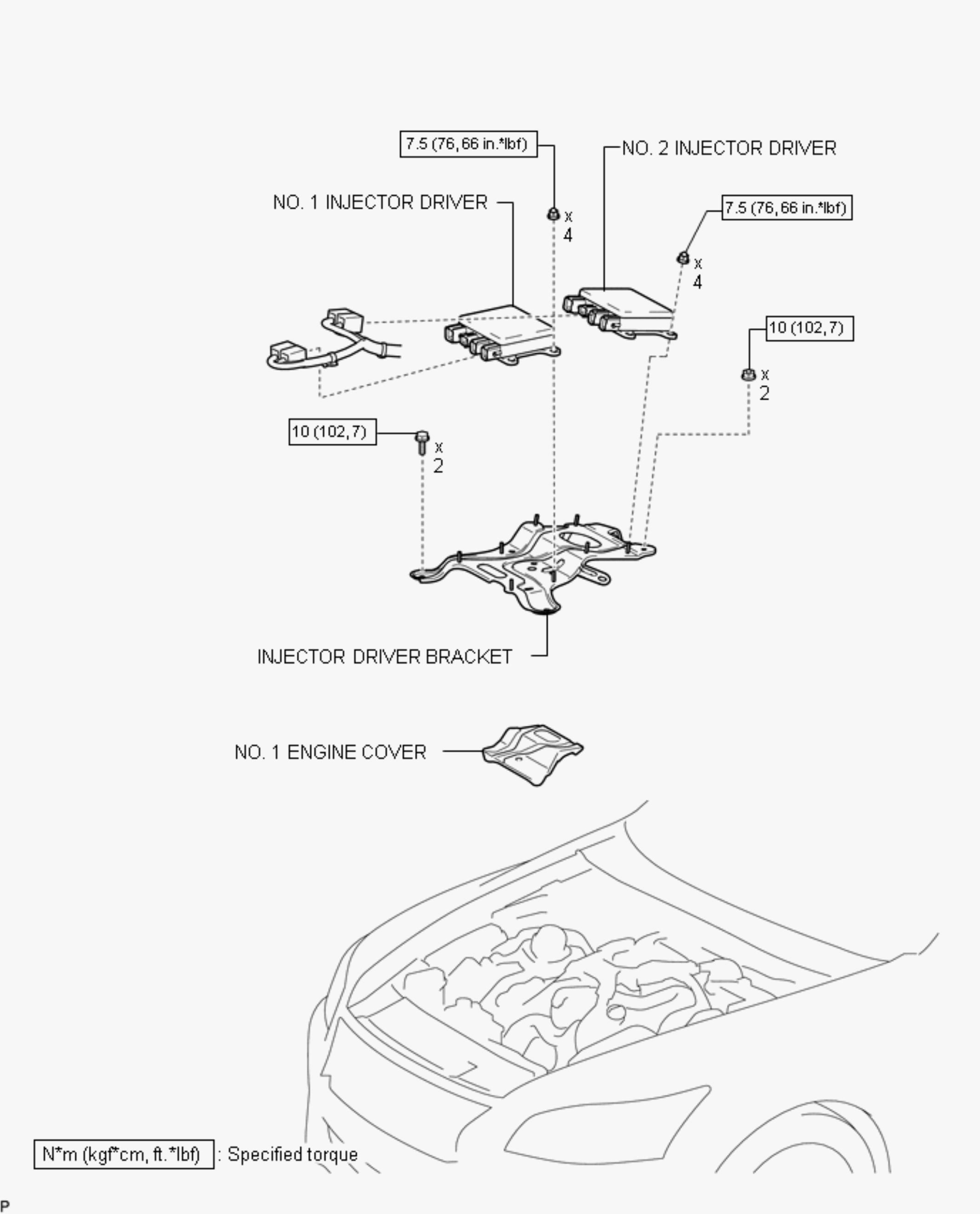

Fig 1: Injector Driver Component Location
GTY649371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
